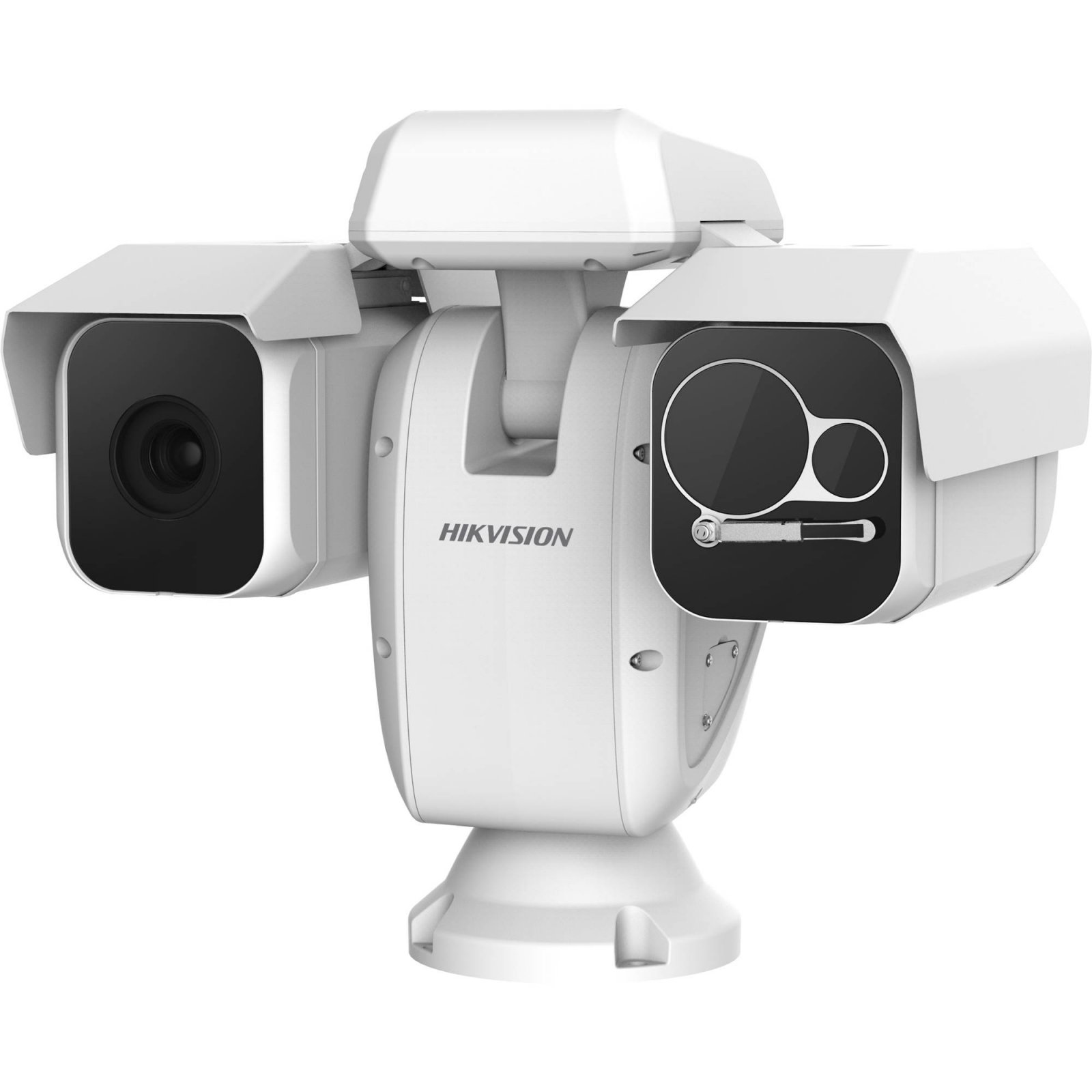

DS-2TD6236-75C2L/V2. Thermal & Optical Bi-spectrum Network Positioning System

• High sensitivity thermal module with 384 x 288 resolution
• NETD is less than 40 mk (@25° C, F#=1.0)
• Supports contrast adjustment
• Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
• Up to 15 palettes of adjustable color
• Smart tracking: Panorama, event and multi-scene patrol
• Smart tracking linkage: Thermal and optical views
• Powerful behavior analysis algorithm, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
• Reliable temperature-anomaly alarm
• Advanced fire detection algorithm

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Pixel Interval17μm
• NETDless than 40mk (@25°C,F#=1.0)
• MRAD0.23
• Field Of View4.98° × 3.74°
• Min. Focusing Distance8 m
• ApertureF1.0
• Response Waveband8μm to 14μm

• Optical Module
• Max. Resolution1920 × 1080
• Image Sensor1/2.8’’ Progressive Scan CMOS
• Min. IlluminationColor : 0.05Lux @ (F1.8, AGC ON),B/W : 0.01Lux @ (F1.8, AGC ON)
• Field Of View41.3° to 1.2° (Wide-Tele)
• Aperture RangeF1.8-F6.1
• Focus ModeAuto / Semiautomatic / Manual
• WDRDigital
• Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
• Day & NightIR Cut Filter

• Smart Function
• VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
• Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
• Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Accuracy±8 °C (14.4 °F)
• Fire DetectionDynamic fire point detection, up to 10 fire points detectable.

• PTZ
• Movement RangePan: 360° Continuous Rotate; Tilt: From -15° to + 90° (auto flip)
• Pan SpeedConfigurable, From 0.1°/s to 160°/s, Preset Speed: 240°/s
• Tilt SpeedConfigurable, From 0.1°/s to 120°/s, Preset Speed: 200°/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8; Up to 32 Presets Per Patrol
• Pattern Scan4; More Than 10 Minutes Per Pattern
• Power Off MemoryYes
• ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT StatusTurn On/Turn Off
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

• Infrared
• IR DistanceUp to 500 m
• IR Intensity And AngleAutomatically adjusted

• Network
• Main StreamOptical:50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720),Optical:60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720),Thermal: 50fps(640 × 512)
• Sub StreamOptical:50Hz:25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144),Optical:60Hz:30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120),Thermal: 50fps(640 × 512)
• Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
• Audio CompressionG.711u/G.711a/G.722.1/MP2L2/G.726/PCM
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjourl
• Simultaneous Live ViewUp to 20-ch
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

• Integration
• Alarm InputUp to 7-ch Input (0-5V DC)
• Alarm OutputUp to 2-ch Relay Output; Support Alarm Linkage
• Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1KΩ±10%
• Audio OutputLinear Level; Impedance: 600Ω
• EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
• SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
• Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
• RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
• Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
• ClientiVMS-4200
• Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages

• General
• Menu LanguageEnglish
• Power24V AC
• Power Consumption120W
• Work Temperature/HumidityFrom -40°C to 60°C (-40°F to 140°F); Humidity: 90% or Less
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimensions486.1 mm × 351.6 mm × 450.3 mm (19.14'' × 13.84'' × 17.73'')
• WeightApprox. 19kg (41.89lb)
