DS-2AE5225T-A3. Hikvision 5-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2AE5225T-A3. Hikvision 5-inch 2 MP 25X Powered by DarkFig

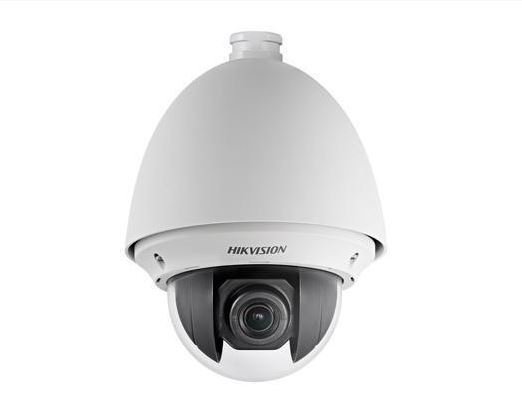

DS-2AE4225T-D. Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 25x optical zoom allows for closer viewing of subjects in expansive areas
  • Water and dust resistant (IP66)
  • Lens
  • FOVHorizontal field of view: 57.6° to 2.5° (wide to tele),Vertical field of view: 34.4° to 1.4° (wide to tele),Diagonal field of view: 64.5° to 2.9° (wide-tele)
  • Zoom SpeedApprox. 3.6 s (optical, wide to tele)
  • Working Distance10 mm to 1500 mm (wide to tele)
  • Aperture RangeF 1.6 to F 3.5
  • Focal Length4.8 mm to 120 mm, 25× Optical
  • Image
  • Max. Resolution1920 × 1080
  • Camera Module
  • Frame Rate50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGCAUTO/MANUAL
  • DNR3D DNR
  • Regional FocusYes
  • Image Sensor1/2.8'' progressive scan CMOS
  • ModelDS-2AE4225T-D(C)
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON)
  • White BalanceAUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
  • Shutter TimePAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDR≥ 120 dB
  • BLCYes
  • HLCYes
  • EISYes
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 100°/s,Pan preset speed: 100°/s
  • Movement Range (Tilt)-5° to 90° (auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 80°/s,Tilt preset speed: 80°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Presets256
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time no less than 10 minutes
  • Power-Off MemoryYes
