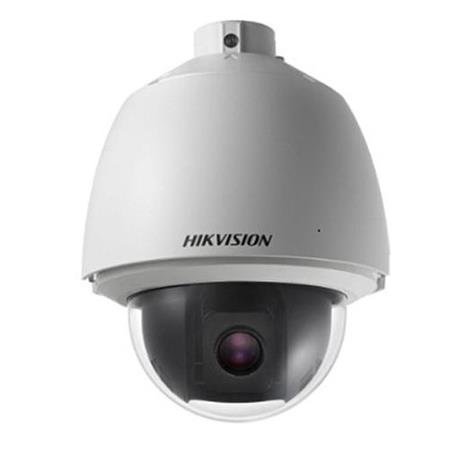

DS-2AE5232T-A. Hikvision 5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2AE5232T-A. Hikvision 5-inch 2 MP 32X Powered by DarkFigh

DS-2AE5232T-A. Hikvision 5-inch 2 MP 32X Powered by DarkFighter Analog Speed Dome (Johor)

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back lighting due to 120 dB WDR technology
  • Pan and tilt ability enables camera to monitor zones of interest
  • 32x optical zoom allows for closer viewing of subjects in expansive areas
  • Water and dust resistant (IP66)
  • Lens
  • Zoom SpeedApprox. 5.6 s (optical, wide to tele)
  • Working Distance10 mm to 1500 mm (wide to tele)
  • Aperture RangeF 1.2 to F4.4
  • Horizontal Field Of View54.2° to 1.97° (wide-tele)
  • Focal Length4.8 mm to 153 mm, 32× Optical
  • Image
  • Max. Resolution1920 × 1080
  • Camera Module
  • Frame Rate50Hz: 25fps @(1920 × 1080),60Hz: 30fps @(1920 × 1080)
  • AGCAUTO/MANUAL
  • DNR3D DNR
  • Regional FocusYes
  • Image Sensor1/2.8' progressive scan CMOS
  • ModelDS-2AE5232T-A(C)
  • Min. IlluminationColor: 0.005 Lux @(F1.2, AGC ON),B/W: 0.001 Lux @(F1.2, AGC ON)
  • White BalanceAUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
  • Shutter TimePAL: 1/1 s to 1/10,000 s,NTSC: 1/1 s to 1/10,000 s
  • Day & NightIR cut filter
  • Digital Zoom16×
  • Privacy Mask8 programmable privacy masks
  • Focus ModeAuto/Semiauto/Manual
  • WDR≥ 120 dB
  • BLCYes
  • HLCYes
  • EISYes
  • PTZ
  • Movement Range (Pan)360° endless
  • Pan SpeedPan manual speed: 0.1° to 250°/s,Pan preset speed: 250°/s
  • Movement Range (Tilt)-5° to 90° (auto flip)
  • Tilt SpeedTilt manual speed: 0.1° to 150°/s,Tilt preset speed: 150°/s
  • Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
  • Presets256
  • Patrol Scan10 patrols, up to 32 presets per patrol
  • Pattern Scan5 patterns, with the total recording time no less than 10 minutes
  • Power-Off MemoryYes
  • Park ActionPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • PTZ Status DisplayON/OFF
Brouchure: https://cdn1.npcdn.net/attachments/15820937710af13fd259011654fa8e50c31a31187f.pdf
