DS-2CE72DFT-F28. Hikvision 2 MP ColorVu Fixed Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

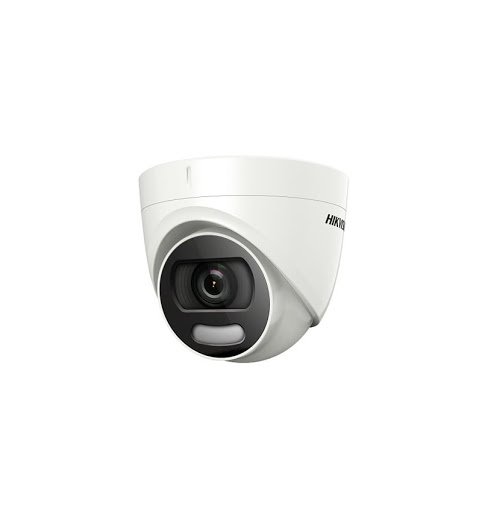

DS-2CE72DFT-F28. Hikvision 2 MP ColorVu Fixed Turret Camera

DS-2CE72DFT-F28. Hikvision 2 MP ColorVu Fixed Turret Camera

  • 2 MP full time color turret camera
  • 24/7 full color imaging
  • 2.8 mm fixed focal lens
  • Warm supplemental light with 20 m range
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Lens2.8 mm fixed lens
  • Horizontal Field Of View2.8 mm, horizontal FOV: 104°, vertical FOV: 54°, diagonal FOV: 126°
  • Lens MountM16
  • Day & NightColor
  • WDR (Wide Dynamic Range)130 dB
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Menu
  • Image ModeSTD/HIGH-SAT
  • AGCSupport
  • Day/Night ModeColor
  • White BalanceATW/MANUAL
  • HLCYes
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, 3D DNR, Mirror, Smart light
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • Power ConsumptionMax. 3 W
  • Protection LevelIP67
  • MaterialMain Body: Metal Enclosure: Plastic
  • IR RangeUp to 20 m
  • CommunicationHIKVISION-C
  • DimensionsØ 109.82 mm × 85.56 mm ( Ø 4.32' × 3.37')
  • WeightApprox. 336 g (0.74 lb.)
Brouchure: https://cdn1.npcdn.net/attachments/15813077060af13fd259011654fa8e50c31a31187f.pdf
