DS-2CC52D9T-AVPIT3ZE. Hikvision 2MP POC Vandal Moto Varifocal Dome Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CC52D9T-AVPIT3ZE. Hikvision 2MP POC Vandal Moto Varifoca

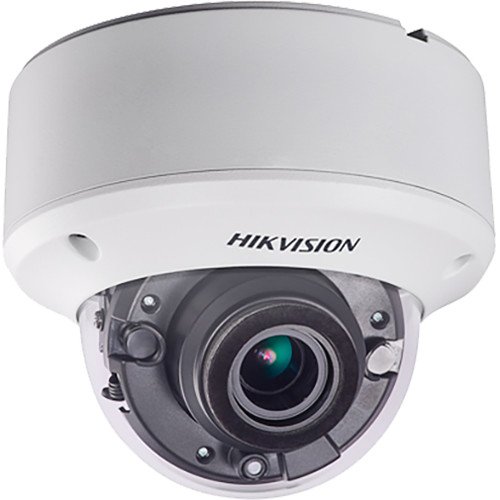

DS-2CC52D9T-AVPIT3ZE. Hikvision 2MP POC Vandal Moto Varifocal Dome Camera

  • 2 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Dual outputs (HDTVI and CVBS signals output simultaneously)
  • Transmits both HD video and power over the same coaxial cable
  • Camera
  • Slow ShutterMax.: 30 times
  • Lens2.8 mm to 12 mm, motorized vari-focal lens
  • Horizontal Field Of View32.1° to 98°
  • Lens MountΦ14
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Shutter TimePAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s
  • Effective Resolution1920 (H) × 1080 (V)
  • Auto IrisSupport
  • Angle Adjustment (Bracket)Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
  • WDR> 120 dB
  • Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (White & Black)
  • White BalanceATW/AWC-SET/MANUAL
  • Privacy MaskON/OFF, 8 programmable privacy masks
  • Motion Detection4 programmable motion areas
  • Backlight CompensationWDR/BLC/HLC/OFF
  • FunctionsDefog, Mirror, Defective Pixel Correction, Sharpness, Camera Title, LSC (Lens Shading Correction)
  • SceneIndoor/outdoor/indoor 1/low light
  • Voltage DetectionSupport
  • 2D & 3D DNRON/OFF
  • Interface
  • Video Output1 HD analog output/1 CVBS output (75Ω/BNC)
  • Alarm1 alarm in/out
  • General
  • Power Supply24 V AC/12 V DC ±30%/PoC.at
  • Power ConsumptionMax.: 6 W
  • MaterialMetal
  • CommunicationUp the coax, Protocol: HIKVISION-C
  • DimensionsΦ 145.2 mm × 124.1 mm (7.1' × 4.9')
  • WeightApprox. 2000 g (4.4 lb.)
  • Operating Conditions-40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
  • Ingress ProtectionIP67, IK10
  • IR DistanceUp to 40 m
Brouchure: https://cdn1.npcdn.net/attachments/15813012810af13fd259011654fa8e50c31a31187f.pdf
