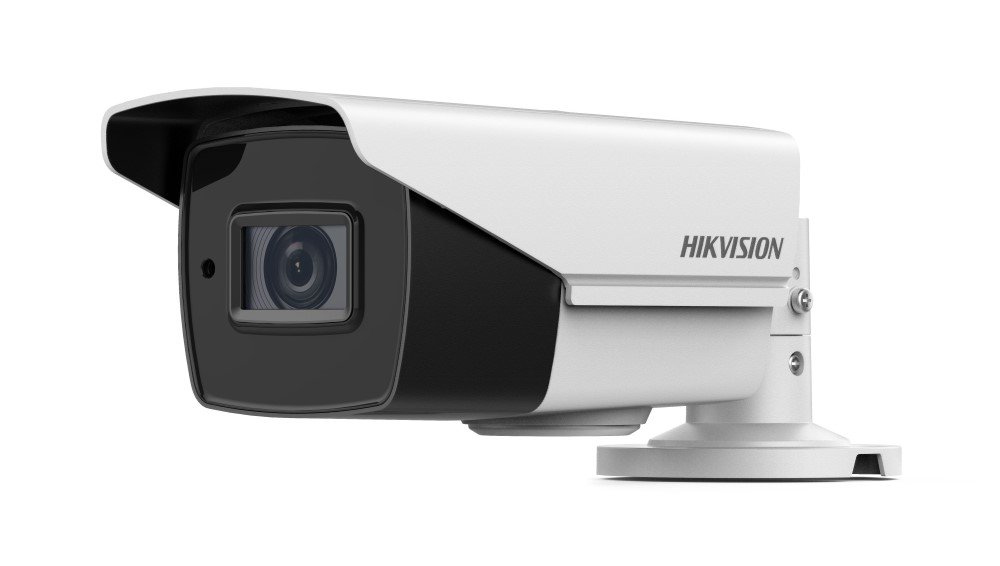

DS-2CE19U8T-AIT3Z. Hikvision 4K Moto Varifocal Bullet Camera
CCTV System --- HIKVISION ---
Previous ‹‹ | » Next |
DS-2CE19U8T-AIT3Z. Hikvision 4K Moto Varifocal Bullet Camera
- 8 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- Lens focuses automatically when zooming in or out
- EXIR 2.0: advanced infrared technology with 80 m IR distance
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Camera
- Slow ShutterMax. 16 times
- Lens2.8 mm to 12 mm motorized vari-focal lens
- Horizontal Field Of View108.1° to 45.6°
- Lens MountΦ14
- Day & NightIR cut filter
- SynchronizationInternal synchronization
- WDR (Wide Dynamic Range)120 dB
- Angle AdjustmentPan: 0° to 360°, Tilt:0° to 90°, Rotate: 0° to 360°
- Image Sensor8.29 megapixel progressive scan CMOS
- Signal SystemPAL/NTSC
- Frame RatePAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fps,NTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
- Resolution3840 (H) × 2160 (V)
- Min. IlluminationColor: 0.003 Lux@(F1.2 AGC ON), 0 Lux with IR
- Shutter TimePAL: 1/12.5 s to 1/10,000 s,NTSC: 1/15 s to 1/10,000 s
- Menu
- AGCSupport
- Day/Night ModeAuto/Color/BW (Black and White)
- White BalanceAuto/Manual/Natural
- Privacy MaskON/OFF, 4 programmable privacy masks
- Backlight CompensationSupport
- 3D DNR (Digital Noise Reduction)Level 1 to 10
- LanguageEnglish
- FunctionsContrast, Sharpness, Saturation, Mirror, Defog, HLC
- Interface
- TVI Video Output1 HD analog output
- CVBS Video Output1 CVBS output (75Ω/BNC)
- General
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- Power Supply12 VDC ±25% ,-A: 12 VDC ±25%, 24 VAC ±25%,*You are recommended to use one power adapter to supply the power for one camera.
- Power ConsumptionMax.11.5 W,-A: Max. 14.5 W
- MaterialMetal
- IR RangeUp to 80 m
- CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
- Dimensions92 mm × 89 mm × 269.6 mm (3.62' × 3.5' × 3.34')
- WeightApprox. 955 g (2.11 lb.)
- Ingress ProtectionIP67
