DS-2CE5AU7T-AVPIT3ZF. Hikvision 4K Ultra Low Light Vandal Moto Varifocal Dome Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE5AU7T-AVPIT3ZF. Hikvision 4K Ultra Low Light Vandal Mo

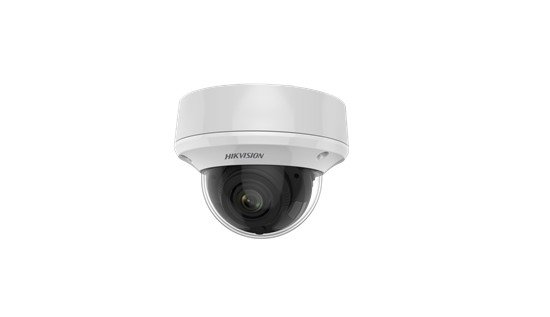

DS-2CE5AU7T-AVPIT3ZF. Hikvision 4K Ultra Low Light Vandal Moto Varifocal Dome Camera

  • 5 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Lens2.7 mm to 13.5 mm motorized varifocal lens
  • Horizontal Field Of View108.1° to 45.6°
  • Lens MountΦ14
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • WDR (Wide Dynamic Range)≥ 130 dB
  • Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: 960H P/N
  • Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
  • Menu
  • AGCYes
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto/Manual
  • Backlight CompensationYes
  • WDRYes
  • FunctionsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
  • Power ConsumptionMax. 8.2 W
  • MaterialMetal
  • IR RangeUp to 60 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • DimensionsØ 145 mm × 111.3 mm (Ø 5.69' × 4.37')
  • WeightApprox. 860 g (1.90lb.)
  • Ingress ProtectionIP67, IK10
Brouchure: https://cdn1.npcdn.net/attachments/15810444170af13fd259011654fa8e50c31a31187f.pdf
