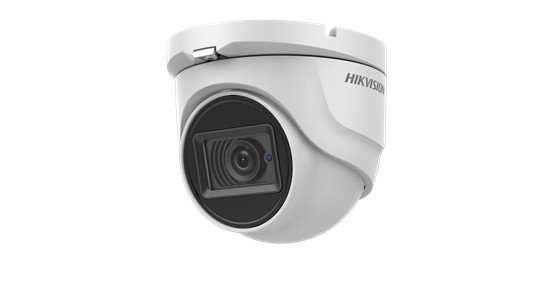

DS-2CE76H8T-ITMF. Hikvision 5MP Fixed Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE76H8T-ITMF. Hikvision 5MP Fixed Turret Camera

DS-2CE76H8T-ITMF. Hikvision 5MP Fixed Turret Camera

  • 5 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Lens2.8 mm, 3.6 mm, 6 mm fixed lens
  • Horizontal Field Of View98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • WDR (Wide Dynamic Range)≥ 130 dB
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Image Sensor5 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC
  • Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
  • Menu
  • AGCYes
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceAuto/Manual
  • Privacy Mask4 programmable privacy masks
  • Motion Detection4 programmable areas
  • Backlight CompensationYes
  • WDRYes
  • 3D DNR (Digital Noise Reduction)Level 1 to 9
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera.
  • Power ConsumptionMax. 5.8 W
  • MaterialMetal
  • IR RangeUp to 30 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions90 mm × 79.37 mm (3.54' × 3.12')
  • WeightApprox. 300 g (0.66 lb.)
  • Ingress ProtectionIP67
Brouchure: https://cdn1.npcdn.net/attachments/15810420610af13fd259011654fa8e50c31a31187f.pdf
