DS-2CE16D8T-AIT3ZF. Hikvision 2MP Ultra Low Light Moto Varifocal Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE16D8T-AIT3ZF. Hikvision 2MP Ultra Low Light Moto Varif

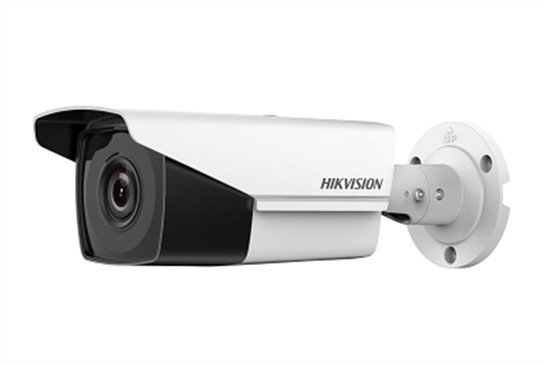

DS-2CE16D8T-AIT3ZF. Hikvision 2MP Ultra Low Light Moto Varifocal Turret Camera

  • 2 MP high performance bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 80 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Lens2.7 mm to 13.5 mm motorized, auto focus
  • Horizontal Field Of View103° to 32.1°
  • Lens MountΦ14
  • Day & NightIR cut filter
  • WDR (Wide Dynamic Range)≥ 130 dB
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360
  • Menu
  • Image ModeSTD/HIGH-SAT
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MANUAL
  • HLCYes
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, Mirror, Smart IR
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 VDC ±25%, 24 VAC ±25%
  • Power ConsumptionMax. 7.5W, -A: Max. 9W
  • Protection LevelIP67
  • MaterialMetal
  • IR RangeUp to 80 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions85 mm × 92 mm × 269.6 mm (3.3' × 3.6' × 10.6')
  • WeightApprox. 910 g (2.01 lb.), -A: Approx. 940 g (2.07 lb.)
Brouchure: https://cdn1.npcdn.net/attachments/15810414540af13fd259011654fa8e50c31a31187f.pdf
