DS-2CE56D8T-ITME. Hikvision 2MP Ultra Low Light POC Fixed Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56D8T-ITME. Hikvision 2MP Ultra Low Light POC Fixed Tu

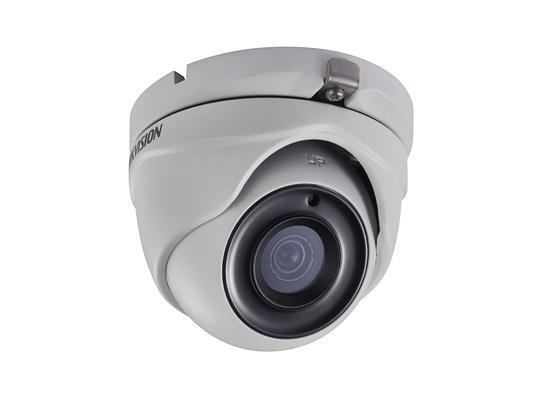

DS-2CE56D8T-ITME. Hikvision 2MP Ultra Low Light POC Fixed Turret Camera

  • 2 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable
  • Camera
  • Slow ShutterMax. 16 times
  • Lens2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Horizontal Field Of View103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • WDR (Wide Dynamic Range)> 120 dB
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MANUAL
  • Privacy MaskON/OFF, 4 programmable privacy masks
  • Motion Detection4 programmable motion areas
  • Backlight CompensationWDR/BLC/OFF
  • 3D DNR (Digital Noise Reduction)Level 1 to 10
  • LanguageEnglish, Chinese
  • FunctionsBrightness, Sharpness, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ±25%/PoC.af
  • Power ConsumptionMax. 3.6 W
  • MaterialMetal
  • IR RangeUp to 20 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions91 mm × 82.6 mm × 68.3 mm (3.58' × 3.25' × 2.69')
  • WeightApprox. 350 g (0.77 lb.)
  • Ingress ProtectionIP67
Brouchure: https://cdn1.npcdn.net/attachments/15810411480af13fd259011654fa8e50c31a31187f.pdf
