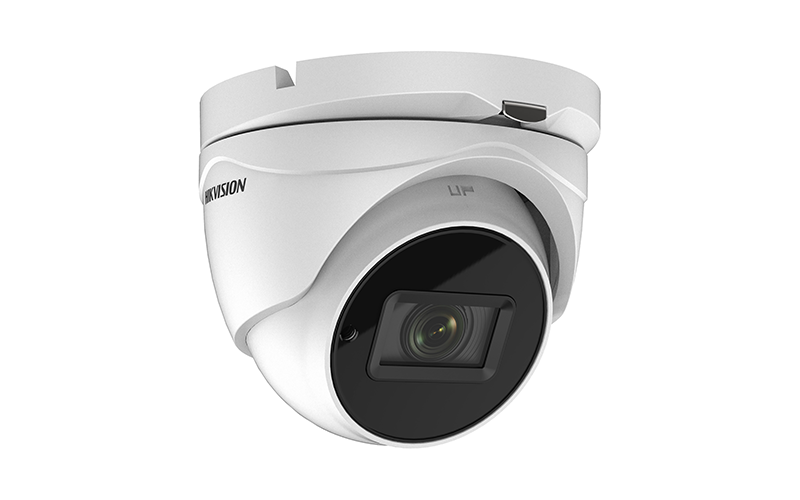

DS-2CE79H8T-AIT3ZF. Hikvision 5MP Moto Varifocal Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE79H8T-AIT3ZF. Hikvision 5MP Moto Varifocal Turret Came

DS-2CE79H8T-AIT3ZF. Hikvision 5MP Moto Varifocal Turret Camera

  • 5 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Lens focuses automatically when zooming in or out
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Image Sensor5 MP CMOS
  • Signal SystemPAL/NTSC
  • Frame RateTVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
  • Resolution2560 (H) × 1944 (V)
  • Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
  • Lens2.7 mm to 13.5 mm motorized varifocal lens
  • Horizontal Field Of View92.3° to 29.3°
  • Lens MountΦ14
  • Day & NightICR
  • WDR (Wide Dynamic Range)≥130 dB
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
  • Menu
  • Image ModeSTD/HIGH-SAT
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MANUAL
  • HLCYes
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, Mirror, Smart IR
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
  • Power Supply12 VDC ± 20%, 24 VAC ± 20%
  • Power ConsumptionMax. 10.5 W
  • Protection LevelIP67
  • MaterialMetal
  • IR RangeUp to 60 m
  • CommunicationHIKVISION-C
  • Dimensions123.86 mm × 134.3 mm × 110.24 mm (4.88' × 5.29' × 4.34')
  • WeightApprox. 630 g (1.39 lb.)
Brouchure: https://cdn1.npcdn.net/attachments/15807817380af13fd259011654fa8e50c31a31187f.pdf
