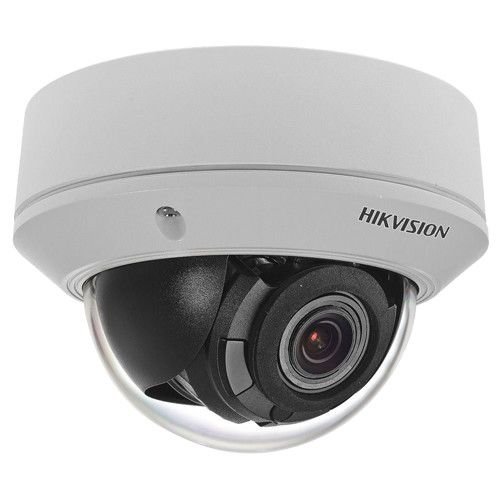

DS-2CE56H0T-ITZF. Hikvision 5MP Indoor Moto Varifocal Dome Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56H0T-ITZF. Hikvision 5MP Indoor Moto Varifocal Dome C

DS-2CE56H0T-ITZF. Hikvision 5MP Indoor Moto Varifocal Dome Camera

  • 5 MP dome camera
  • 2.7-13.5 mm motorized vari-focal lens
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Lens2.7 mm to 13.5 mm motorized vari-focal lens
  • Horizontal Field Of View95.7° to 29.1°
  • Lens MountΦ 14
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355°
  • Image Sensor5 MP CMOS image sensor
  • Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MWB
  • Backlight CompensationSupport
  • DWDR (Digital Wide Dynamic Range)Support
  • FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ±15%, 24 VAC ±15%
  • Power ConsumptionDS-2CE56H0T-ITZF: Max. 4.4 W DS-2CE56H0T-AITZF: Max. 6.0 W
  • MaterialPlastic
  • IR RangeUp to 40 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • DimensionsØ 136 mm × 101.9 mm ( Ø 5.35' × 4.01')
  • WeightDS-2CE56H0T-ITZF: 410 g (0.90 lb.) DS-2CE56H0T-AITZF: 445 g (0.98 lb.)

Brouchure: https://cdn1.npcdn.net/attachments/15804621560af13fd259011654fa8e50c31a31187f.pdf
