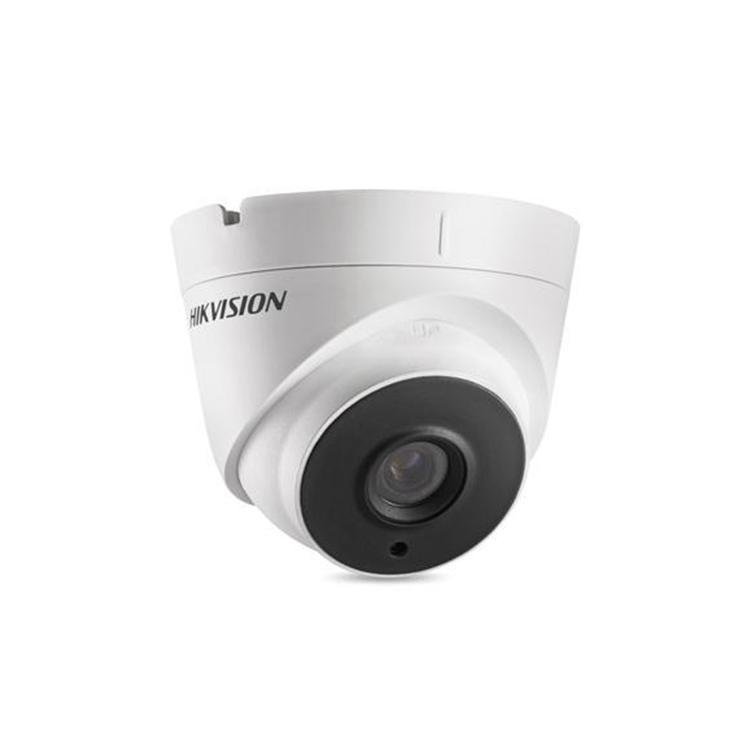

DS-2CE56D0T-IT3F. Hikvision 2MP Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56D0T-IT3F. Hikvision 2MP Camera

DS-2CE56D0T-IT3F. Hikvision 2MP Camera

  • 2 MP turret camera
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • Lens3.6mm, 2.8 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Horizontal Field Of View103° (2.8 mm), 82.2°(3.6mm), 54°(6mm), 37.7°(8mm), 24.2°(12 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Image Sensor2 MP CMOS image sensor
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON),0 Lux with IR
  • Shutter Time1/25(1/30) s to 1/50,000 s
  • Menu
  • AGCLow/middle/high
  • Day/Night ModeSmart/color/BW(Black and White)
  • Backlight CompensationYes
  • DWDR (Digital Wide Dynamic Range)Yes
  • LanguageEnglish, Chinese
  • FunctionsBrightness, Sharpness, DNR, Mirror
  • Interface
  • Video Output1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Power Supply12 V DC±15%
  • Power ConsumptionMax. 4 W
  • MaterialPlastic
  • IR RangeUp to 40 m
  • DimensionsΦ110 mm × 93.2 mm (4.33' × 3.67')
  • Weight350 g (0.77 lb.)
  • Ingress ProtectionIP66

Brouchure: https://cdn1.npcdn.net/attachments/15804615610af13fd259011654fa8e50c31a31187f.pdf
