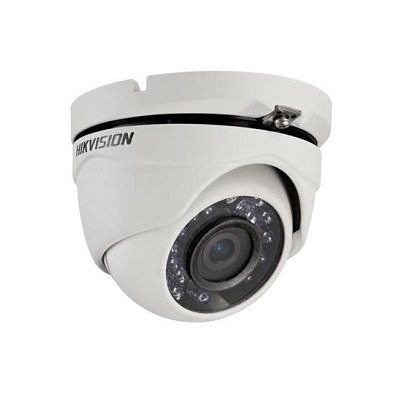

DS-2CE56C0T-IRMF. Hikvision 1MP Fixed Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56C0T-IRMF. Hikvision 1MP Fixed Turret Camera

DS-2CE56C0T-IRMF. Hikvision 1MP Fixed Turret Camera

  • HD 720p turret camera
  • Smart IR: up to 20 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
  • Camera
  • LensField of view: 70.9° (3.6 mm), 92° (2.8 mm), 56.7° (6 mm)
  • Lens MountM12
  • Day & NightICR
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Effective Pixels1296 (H) × 732 (V)
  • S/N Ratio>62 dB
  • Image Sensor1 MP CMOS Image Sensor
  • Signal SystemPAL/NTSC
  • Frame Rate720p@25fps/720p@30fps
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25 (1/30) s to 1/50,000 s
  • Interface
  • Video Output1 analog HD output
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Power Supply12 V DC±15%
  • Power ConsumptionMax. 4 W
  • Protection LevelIP66
  • IR RangeUp to 20 m
  • Dimensions89.47 × 67.6 mm (3.52' × 2.7')
  • Weight340 g (0.75 lb.)
Brouchure: https://cdn1.npcdn.net/attachments/15804373060af13fd259011654fa8e50c31a31187f.pdf
