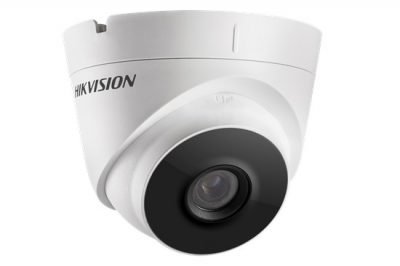

DS-2CE56D0T-IT1E. Hikvision 2MP Fixed Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56D0T-IT1E. Hikvision 2MP Fixed Turret Camera

DS-2CE56D0T-IT1E. Hikvision 2MP Fixed Turret Camera

  • 2 MP PoC turret camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP66)
  • Transmits both HD video and power over the same coaxial cable;
  • Camera
  • Lens2.8 mm, 3.6 mm, 6 mm fixed lens
  • Horizontal Field Of View103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Menu
  • AGCLow/middle/high
  • Day/Night ModeSmart/color/BW(Black and White)
  • Backlight CompensationYes
  • DWDR (Digital Wide Dynamic Range)Yes
  • LanguageEnglish, Chinese
  • FunctionsBrightness, Sharpness, DNR, Mirror
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ± 30%/PoC.af
  • Power ConsumptionMax. 3 W
  • MaterialFront cover: Mental Main Body: Plastic Bracket: Metal
  • IR RangeUp to 20 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions86.7 mm × 81.6 mm × 226 mm(3.4' × 3.2' × 8.9')
  • WeightApprox. 430 g (0.95 lb)
  • Ingress ProtectionIP66

Brouchure: https://cdn1.npcdn.net/attachments/15804364710af13fd259011654fa8e50c31a31187f.pdf
