DS-2CE56C2T-VFIR3. Hikvision 1MP Manual Varifocal Turret Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

DS-2CE56C2T-VFIR3. Hikvision 1MP Manual Varifocal Turret Cam

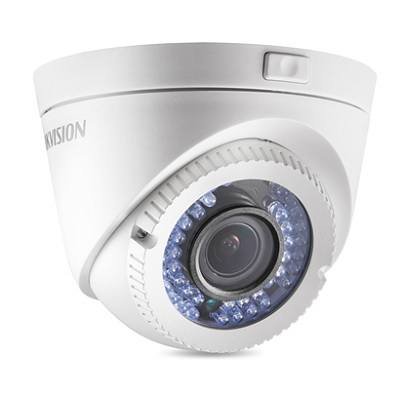

DS-2CE56C2T-VFIR3. Hikvision 1MP Manual Varifocal Turret Camera

  • HD 720p vari-focal turret camera
  • 2.8-12 mm vari-focal lens
  • Smart IR: up to 40 m IR distance
  • Water and dust resistant (IP66)
  • Camera
  • LensAngle of view: 29.3°-92°
  • Lens Mountφ14
  • Day & NightICR
  • SynchronizationInternal synchronization
  • Angle AdjustmentPan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
  • Effective Pixels1280(H)*960(V)
  • S/N Ratio62dB
  • Image Sensor1.3MP CMOS Image Sensor
  • Signal SystemPAL/NTSC
  • Frame Rate720p@25fps/720p@30fps
  • Min. Illumination0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
  • Shutter Time1/25(1/30)s to 1/50,000s
  • Interface
  • Video Output1 Analog HD output
  • General
  • Operating Condition-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
  • Power Supply12 VDC±15%
  • Power ConsumptionMax. 5W
  • Protection LevelIP66
  • IR RangeUp to 40m
  • DimensionsΦ130.54 × 102.4mm (Φ5.1” × 4.0”)
  • Weight600 g

Brouchure: https://cdn1.npcdn.net/attachments/15803498790af13fd259011654fa8e50c31a31187f.pdf
