DS-2CE16H0T-IT3E. Hikvision 5MP POC Fixed Bullet Camera

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

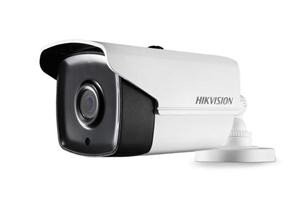

DS-2CE16H0T-IT3E. Hikvision 5MP POC Fixed Bullet Camera

DS-2CE16H0T-IT3E. Hikvision 5MP POC Fixed Bullet Camera

  • 5 MP bullet camera
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable
  • Camera
  • Image Sensor5 MP CMOS image sensor
  • Signal SystemPAL/NTSC
  • Frame RatePAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps
  • Resolution2560 (H) × 1944 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
  • Lens2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Horizontal Field Of View85.5° (2.8 mm), 80.1° (3.6 mm), 57.1° (6 mm), 41° (8 mm), 25.7° (12 mm)
  • Lens MountM12
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360°
  • Menu
  • AGCSupport
  • Day/Night ModeAuto/Color/BW (Black and White)
  • White BalanceATW/MWB
  • BLC (Backlight Compensation)Yes
  • LanguageEnglish
  • FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • Power Supply12 VDC ±25%, PoC.at
  • Power ConsumptionMax. 5.4 W
  • Protection LevelIP67
  • MaterialMetal
  • IR RangeUp to 40 m
  • CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
  • Dimensions86.7 mm × 81.6 mm × 226 mm (3.41' × 3.23' × 8.67')
  • WeightApprox. 605 g (1.33 lb.)

Brouchure: https://cdn1.npcdn.net/attachments/15803482450af13fd259011654fa8e50c31a31187f.pdf
