BR21/362. Roger Brushless Underground Actuator

     Auto Gate ---    ROGER TECHNOLOGY    ---

Previous ‹‹ » Next

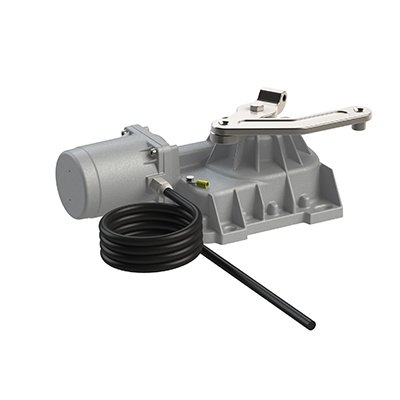

BR21/362. Roger Brushless Underground Actuator

BR21/362. Roger Brushless Underground Actuator

Electromechanical underground motor, BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 5 mt. Double bearings version with 10 mt cable.


Power line supply:    230V AC - 50Hz
Motor power supply:    24V - 36V
Power rating:    200W
Frequency of use:    Intensive use
Torque:    50 - 300 N m
Operating temperature:    -20+55°C
Protection level:    IP67
Reductor Type:    Irreversible
Manoeuvre speed:    1,2 Rpm
Opening time at 90°:    19-29 s
Limit switch:    Mechanical stoppers
Encoder:    Digital native encoder SENSORLESS 48 PPR
Maximun opening:    105°(optional 125° - 360°)
Power supply cable length:    10m
Bearing on main shaft:    Double bearings
Operating cycles per day (opening/closing - 24 hours no stop):    1300
Maximum dimension product in mm (L x W x H):    345 x 224 x 144
Product weight packed (Kg):    15,8
Number items per pallet:    50

Dimensions
Dimensions
