S800H. FAAC 230V Underground Swing Gate Operator

     Auto Gate ---    FAAC    ---

Previous ‹‹ » Next

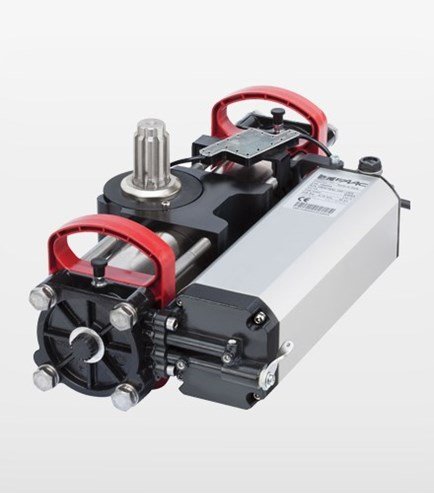

S800H. FAAC 230V Underground Swing Gate Operator

S800H. FAAC 230V Underground Swing Gate Operator

  • Integrated absolute magnetic encoder with bus ''2Easy'' (non polarized two wire connection). FAAC PATENT
  • Thanks to the integrated positive stops, there is no need to install opening and closing mechanical stops on the ground
  • Service release device
  • Easier handling and installation thanks to the integrated handles. FAAC PATENT
Product details

Underground hydraulic operator for residential and condominium swing-leaf gates with single-leaf length of 4 m and max weight of 800 kg.

FAAC - Simply automatic.

Technical specification

Residential & light commercial

Max Leaf Length


Max Leaf Weight





Residential & light commercial

Anti-Crush Features

Force limited by bypass valves
Absolute encoder optional on 230V system


Self locking up to 2m

Special Features

100deg and 180deg versions
All operators have built-in stops
