EFD32. Elid I/O Board

     Door Access System ---    ELID    ---

Previous ‹‹ » Next

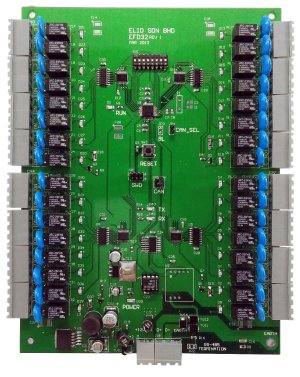

EFD32. Elid I/O Board

  • Communication: 2 wires RS485 Interface (Data+, Data-)
  • Protocol: Peer-to-peer collison detection protocol (E-BUS)
  • Max. doors supported: 2 doors (each with IN and OUT reader)
  • Modes of operations: Card, PIN & Card + PIN
  • Standalone Operation : No
  • Type of reader supported: Barcode, Magnetic, Proximity, Smart Cards, Biometrics, Touch Memory
  • Max. readers supported: 4 (2IN and 2 OUT)
  • Onboard Inputs / Outputs : 4 Inputs, 2 Output
  • EA8 I/O capacity: 2x EA8 units (4 dedicated door outputs, 2 inputs and 2 outputs per EA8)
Model EFD32
Manufacturer ELID Sdn Bhd
Country of Origin Malaysia
Microprocessor NXP 32-bit ARM Cortex-M0 LPC11C24 50 MHz
Relay Outputs  32 Output Points
Power Supply 12VDC
Operating Temperature 0oC to 50oC
Humidity 10% to 90% non-condensing
Casing Dimensions  410(H)x400(L)x120(W)
