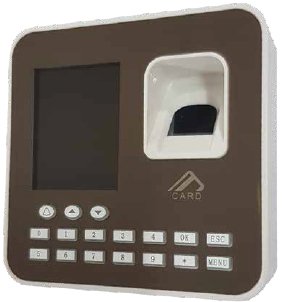

BioCentrix C6. Elid Fingerprint Reader

C6 is an optical fingerprint reader with built-in card reading module. C6 captures and stores fingerprint images to use as templates to verify each specific finger's unique ridge pattern. All fingerprint templates can be downloaded and uploaded to the template management software via TCP/IP configuration. C6 is compatible with all ELID access controllers to provide a complete access management system.


  • Storage capacity: 3,000 fingerprint templates, 3,000 cards and 3,000 passwords
  • Built-in card reader module (EM/MIFARE, depending on the type of card reader used)
  • Multiple verication mode: fingerprint, password, card
  • Fast verification time
  • Large colour LCD display
  • Intuitive operation and installation
  • WIFI Enabled (For specific models only)
  • Fingerprint templates can be downloaded and uploaded via TCP/IP
  • Fingerprint templates/cards/passwords can be edited directly on the device
  • Integrates with all ELID access controllers
Fingerprint Capacity 3,000
Card Capacity 3,000
Password Capacity 3,000
Fingerprint Verification 1:1, 1:N
Working Mode Online/Offline
Verification Mode Fingerprint, ID Card, Password, FP+Card, PIN+Card, FP+PIN+Card
Verification Time < 1 second
False Reject < 0.01%
False Acceptance Rate < 0.0001%
Fingerprint Sensor Optical Sensor, 500dpi
Screen 3 inches (Colour LCD Display)
Display Language English
Communication (Template Management) TCP/IP, USB Disk
Communication (Access Controller) Wiegand-26/ Wiegand-34
Working Humidity 20%-60%
Working Temperature 0-50
Power Supply 12VDC
Idle Current 400mA
Working Current 500mA
Sound Indicator Buzzer, Voice
Battery Back-up  No
Dimension 86 x 86 x 30mm
