uFace202. ZKTeco Multi-Biometric Time Attendance and Access Control Terminal

     Door Access System ---    ZKTECO    ---

Previous ‹‹ » Next

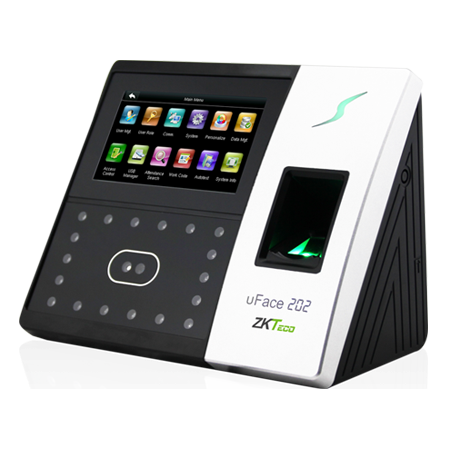

uFace202. ZKTeco Multi-Biometric Time Attendance and Access


ZKTeco has released the uFace202 Multi-Biometric Time Attendance and Access Control Terminal which supports 1,200 face templates, 2,000 fingerprint templates and 10,000 cards (optional). It is equipped with ZKTeco latest hardware platform and algorithm, which provide clients with a brand new UI and user-friendly operating interface, bringing them a smooth using experience. With the advanced face algorithm and multi-biometric verification technology, the terminal’s security level of verification is greatly enhanced.


• 1,200 face and 2,000 fingerprint templates

• Multi-languages

• High verification speed

• Advanced and user-friendly UI

• Chip encryption for firmware protection

• Optional built-in battery backup providing approximately 4 hours of continuous operation

• Easy to extend functions and customize client’s requirements

• One face template is registered for one user only

• Able to detect whether the face is an actual face or a photo, enhancing the security level of verification

Technical Specifications


4.3-Inch Touch Screen

Face capacity

1,200 (1:N)

Fingerprint capacity


ID Card capacity

10,000 (optional)

Logs capacity



TCP/IP, RS232/485, USB Host

Standard Functions

Automatic Status Switch, Self-Service Query, Work Code, SMS, DST, T9 Input, 9 Digit User ID, Scheduled Bell, Photo ID

Interfaces for

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm

Wiegand Signal


Optional Functions

ID/MiFare Card, Wi-Fi, 3G, ADMS, 2000 mAh Backup Battery

Power Supply

12V 3A

Operating Temperature

0 °C ~ 45 °C

Operating Humidity

20% ~ 80%


193.7*164.5*112.5mm (Length*Width*Thickness)

Package Weight

1.6 kg
