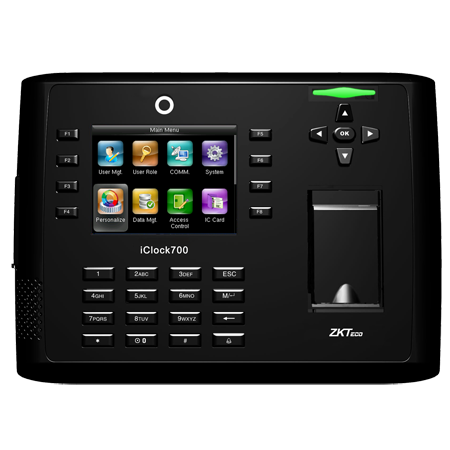

iClock700. ZKTeco Fingerprint Time Attendance and Access Control Terminal

     Door Access System ---    ZKTECO    ---

Previous ‹‹ » Next

iClock700. ZKTeco Fingerprint Time Attendance and Access Con

Overview

iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover,RS232/485, TCP/IP and USB client ensures a smooth date transmission between device and PC.

It also has GPRS,Wi-Fi and 3G connectivity and access control connectivity with Wiegand out and in, electric lock, door sensor, exit button,alarm and Door Bell.

Function

Remarkable User Experience

• Intuitive and stunning UI designed with the most popular and internationalized element.

• Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.

• Faster matching speed: Less than 1 second.

Enhanced Features and Performance

• Multi-languages

• Data backup and retrieve.

• Advanced User ID consisting of letters and numbers.

• Chip encryption for firmware protection.

Excellent Expandability

• Easy to extend functions and customize customers’ requirements.

Access Control Interface

• For Wiegand in and out, door lock connection, alarm and bell.

Technical Specifications

Fingerprint Capacity

8000

ID Card Capacity

10,000 (Optional)

Record Capacity

200,000

Display

3.5-inch TFT Screen

Communication

RS232/485, TCP/IP, USB-client

Standard Functions

Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery , Multiple Verify Mode

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell

Wiegand Sigal

Input & Output

Optional Functions

ID/Mifare/HID, External Printer, ADMS, Wi-Fi, GPRS, 3G

Software

ZKTime.Net 3.0

Power Supply

DC 12V 3A

Verification Speed

≤ 1Sec.

Operating Temp.

0°C ~ 45°C

Operating Humidity

20% ~ 80%

Dimension

225.2*166.0*46.3mm (Length*Width*Thickness)

Gross Weight

1.94 kg

Brouchure: https://cdn1.npcdn.net/attachments/15698140340af13fd259011654fa8e50c31a31187f.pdf
