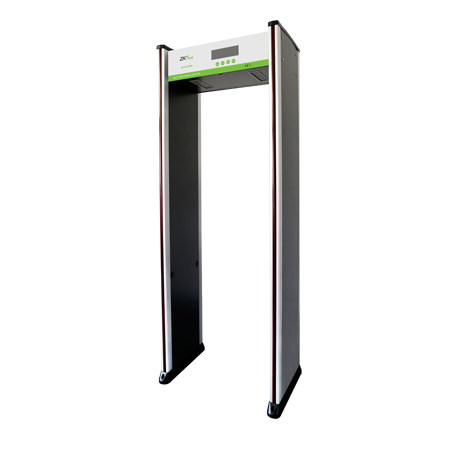

ZK-D2180S. ZKTeco Walk Through Metal Detector

     Metal Detector System ---    ZKTECO    ---

Previous ‹‹ » Next

ZK-D2180S. ZKTeco Walk Through Metal Detector

Function

• Eighteen mutual over-lapping detecting zones, Simultaneous alarm from multi-zones.

• Small LCD screen, English operating software, easy to operate.

• Sensitivity adjustable: Each zone has 256 sensitivity level.

• Sound & LED alarm: Both Side LED indicator, easily show where the metal is.

• Automatically count passengers and alarm times.

• Alarm strength indicator on control panel.

• Password protection, only the authorized person can operate.

• Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.

 Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

• Using high density fireproof material.

• Program Self-diagnostic when power on,no need initial or periodic calibration

• Modularization design,easy for maintenance and replacement.

• 4~8 hours backup battery (Option).

Technical Specifications

Power Supply

AC85 V~264 V

Working temperature

-20~+50

Working Frequency

4KHZ~8KHZ

Standard External size

2200mm(H)*800mm(W)*580mm(D)

Standard Internal size

2010mm(H)*700mm(W)*500mm(D)

Package size for door panels

2260*650*260mm *1ctn

Package size for control unit

780*390*250 mm*1ctn

Gross weight

70KG

Brouchure: https://cdn1.npcdn.net/attachments/15696383580af13fd259011654fa8e50c31a31187f.pdf
