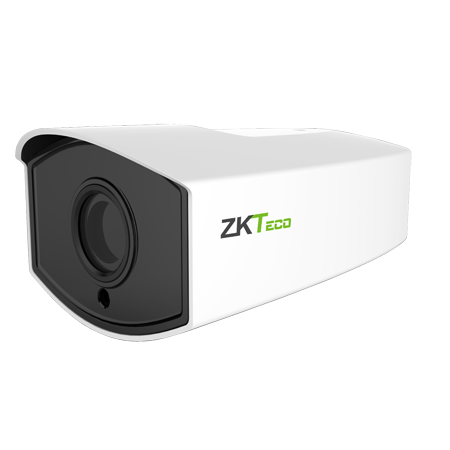

BT-BA10K2 /13K2 /13K4 /20K4. ZKTeco High Definition IR IP Cameras

     CCTV System ---    ZKTECO    ---

Previous ‹‹ » Next

BT-BA10K2 /13K2 /13K4 /20K4. ZKTeco High Definition IR IP Ca

Features

• Support Onvif 2.4, P2P function and mobile view through main stream NVR

• 3D DNR, 8*ROI Area, Stable Snapshot

• Motion Detection

Technical Specifications

Model

BT-BA10K2

BT-BA13K2

BT-BA13K4

BT-BA20K4

Sensor

Progressive scan CMOS sensor

 Progressive scan CMOS sensor

 Progressive scan CMOS sensor

 Progressive scan CMOS sensor

Light-sensing surface area

1/4-inch

1/3-inch

1/3-inch

1/2.7-inch

Resolution

1.0MP

1.3MP

1.3MP

2.0MP

Denition

1280(H)*720(V)

1280(H)*960(V)

1280(H)*960(V)

1920(H)*1080(V)

Video Frame

50Hz: 25fps                  60Hz: 30fps

Video Compression

H.264

Min. illumination

Color: 0.05Lux@(F1.2), Black: 0.01Lux@(F1.2), 0 LUX with IR

Lens

4mm@F1.8 (6/8/12mm optional)

Protocol

TCP/IP, DHCP, HTTP, HTTPS, NTP, DNS, RTP RTS

Working Environment

-10íŠ~+60íŠúČLess than 90%RH

Shutter

Auto

Infrared Resection

IR-CUT

IR Distance

20m

20m

50m

50m

Power Supply

DC12V±10%

Operating Temperature

-10íŠ~+50íŠ

Net Weight

0.64KG/0.5KG

Dimension(color box)

230mm*130mm*117mm

Brouchure: https://cdn1.npcdn.net/attachments/15695715040af13fd259011654fa8e50c31a31187f.pdf
