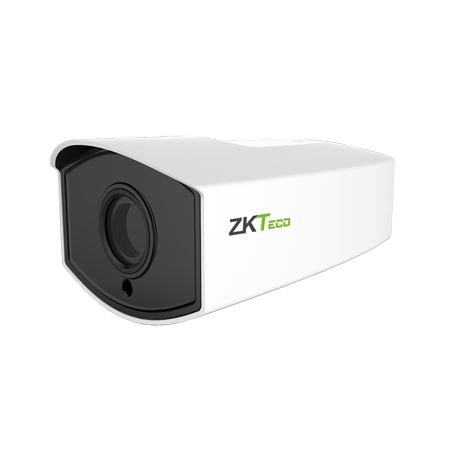

enquiry@asip.com.myGT-ADP220. ZKTeco AHD/ TVI/ CVI/ CVBS 4 in1 Cameras
CCTV System --- ZKTECO ---
| Previous ‹‹ | » Next |
Features
• AHD/TVI/CVI/CVBS 4 in1
• Aptina 0230 CMOS sensor
• 500m Coaxial Transmission
• Data Transmission Without Time Delay
Technical Specifications
|
Model |
GT-ADP220 |
|
Sensor |
Aptina 0230 CMOS sensor |
|
Light-sensing surface area |
1/3” |
|
Resolution |
2.0MP |
|
Definition |
1920(H)*1080(V) |
|
Video Frame |
1920*1080@25fps; 1920*1080@30fps |
|
Min. illumination |
0.01Lux@ (F1.2, AGC ON), 0 LUX with IR |
|
Lens |
4mm (6mm lens optional) |
|
Shutter |
Auto/1/50(1/60)s to 1/10,000s |
|
D&N |
IR-CUT |
|
SNR |
>46dB |
|
Video Output |
1.0V P-P AHD/TVI/CVI/CVBS |
|
IR Distance |
20m |
|
Power Supply |
DC12V±10% |
|
Working Environment |
-20 °C~50 °C |
|
Gross/Net Weight |
0.64KG/0.5KG |
|
Dimension(color box) |
230mm*130mm*117mm |
|
Ethernet |
1*RJ45 10M/100M |
Brouchure: https://cdn1.npcdn.net/attachments/15695672120af13fd259011654fa8e50c31a31187f.pdf
