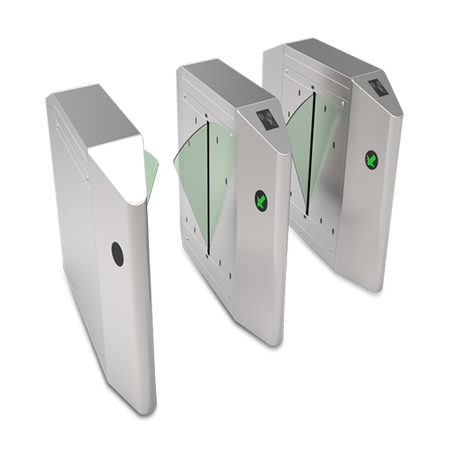

FB1000,FB1011,FB1022. ZKTeco Single Lane Flap Barrier Turnstile

     Turnstile System ---    ZKTECO    ---

Previous ‹‹ » Next

FB1000,FB1011,FB1022. ZKTeco Single Lane Flap Barrier Turnst

Overview

FB1000: Single Lane Flap Barrier.

FB1011: Single Lane Flap Barrier with RFID Access Control System.

FB1022: Single Lane Flap Barrier with Fingerprint and RFID Access Control System.

Flap Barriers are well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the flap barriers. Lights on the barriers are to indicate status of the flap barriers. Steady green lights indicate locked barriers. Blinking green lights indicate accessible barriers.

ZKTeco’s assembled access control system significantly reduces costs for business partners. RFID, fingerprint verification, face recognition, and vein verification technologies are available for options of flexible access control system.

Function

• Electronic Anti-Pinch Function: Auto-suspension of door closure when human is detected.
• Direct Current Operation: Low failure rate to ensure stability and reliability
• Alarm Function: Auto warning and alarming if unauthorized entry with swiping card occurs.
• Flexible switching of reader panel to assemble various readers.

Technical Specifications

Passage Width

600mm

Capacity

25~30/minute

Flap opening/closing time

1S

Overall Width

1200mm

Barrier Height

785mm

Power Supply

AC110-220V,50Hz/60Hz

Operating Power Consumption

80W

Stationary Power Consumption

30W

Temperature

-28 to 60 °C

Net Weight

143Kg(FB1000) 86Kg(FB1200)

Gross Weight

212Kg(FB1000) 121Kg(FB1200)

Two way traffic

Yes

Automatic operation

Yes

Advanced sensor system

Yes

Audible alarm

Yes

LED lighting

Yes

Traffic indicator lights

Yes

Fail-safe

Yes

Brouchure: https://cdn1.npcdn.net/attachments/15694030020af13fd259011654fa8e50c31a31187f.pdf
