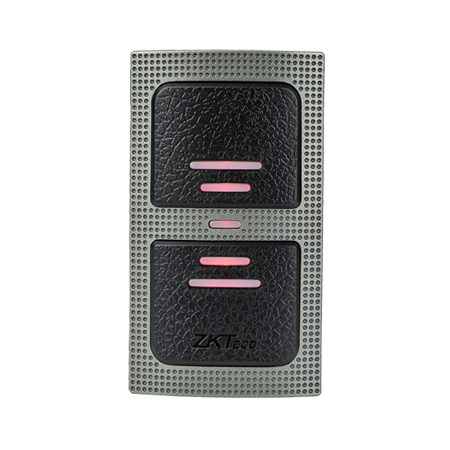

enquiry@asip.com.myKR500. ZKTeco Wiegand Card Readers
Door Access System --- ZKTECO ---
| Previous ‹‹ | » Next |
Function
• Read range of up to 10cm for proximity card and 5 cm for Mifare card
• External LED control
• External Buzzer Control
• Indoor/Outdoor operation
• Solid Epoxy potted
• Waterproof IP64 or IP65
• Reverse Polarity Protection
Technical Specifications
|
Read Range |
• KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM |
|
Reading Time |
• ≤200ms |
|
Input Port |
• External LED Control • External Buzzer Control |
|
Output Port |
• KRxxx-E: 26bit Wiegand (Default) • KRxxx-M: 34bit Wiegand (Default) |
|
Power/Current |
• DC 6-14V / Max.70mA |
|
LED |
• Red and Green LEDs |
|
Operating Temperature |
• -10°C to +65°C |
|
Material |
• ABS+PC with texture |
|
Operating Humidity |
• 10% to 90% relative humidity • non-condensing |
|
Beeper |
• Yes |
|
Index of Protection |
• KR500-E/M: IP65 • KR501-E/M: IP65
• KR502-E/M: IP64 • KR503-E/M: IP65
|
Brouchure: https://cdn1.npcdn.net/attachments/15693129400af13fd259011654fa8e50c31a31187f.pdf
