HY-1500HB.TOA Mounting Bracket

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

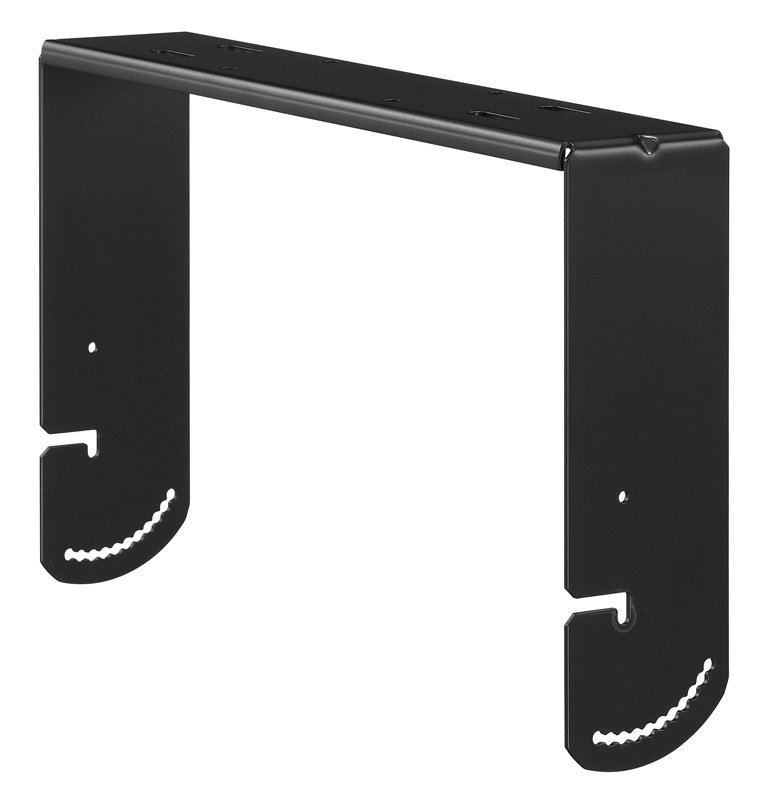

HY-1500HB.TOA Mounting Bracket

The HY-1500HB Mount Bracket is designed to mount speaker system to a wall or ceiling in a horizontal configuration. It allows the speaker orientation angle to be adjusted from 15b upward to 60b downward when mounted on a wall, and from 0b (horizontal) to 90b downward when mounted to a ceiling.

Finish Steel plate, black, paint
Dimensions 485.4 (W) × 288 (H) × 90 (D) mm (19.11' × 11.34' × 3.54')
Weight 2.4 kg (5.29 lb)
Accessory Bracket holder …2, Bracket holder mounting screw …4, Speaker mounting screw …4,
Nut for the optional bracket …4, Washer for the optional bracket …4
Option Ceiling mount bracket: HY-C0801, Wall mount bracket: HY-W0801
Applicable Speaker (option) HS-150B, HS-1500BT


Brouchure: https://cdn1.npcdn.net/attachments/15657570790af13fd259011654fa8e50c31a31187f.pdf
