enquiry@asip.com.myTS-681L.TOA Chairman Unit with Long Microphone
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

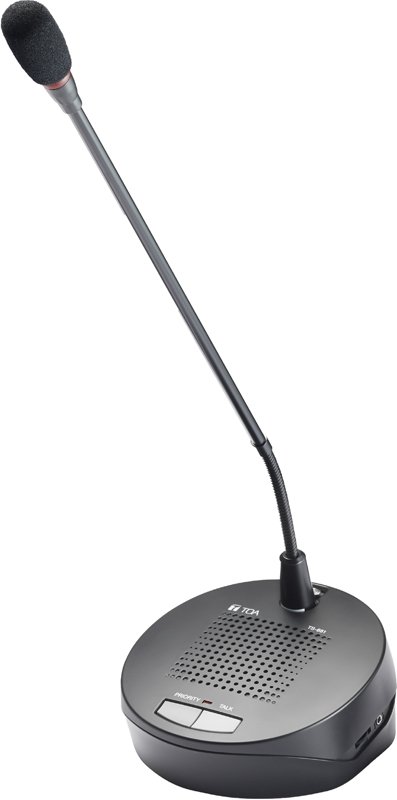

The TS-681L is a Chairman unit of the TOA conference system, TS-680 Series of which compact and lightweight design makes it easy to install and store. Placing the talk key in ON position allows a chairman to speak and disable the speaker to prevent feedback. If the talk key is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing voices from other conference units to be monitored. Priority key on the chairman unit allows chairman to take precedence over any delegate units. And the TS-681L Chairman Unit comes with a long microphone as a standard accessory.
| Power Source | 36 V DC, 30 mA or less (supplied from the Central Unit TS-680) |
|---|---|
| Output |
Headphone/Recording: 32 Ω (headphone)/10 kΩ, -20 dB* (recording), unbalanced, mini jack (with Volume control) Internal speaker: 130 Ω, 200 mW (with Volume control) |
| Control |
Talk Key: Microphone, speaker on-off control by talk key Priority button: Microphone, speaker on-off, other microphone cutoff, and single-tone chime activation Volume control: Headphone output and internal speaker volume adjustable |
|
Microphone Unit (Accessory) |
Electret Condenser Microphone Directivity: Unidirectional Impedance: 1.8kΩ Sensitivity: -37dB (1kHz 0dB = 1V/Pa) Frequency Response: 100Hz - 13 kHz Length: 518mm Weight: 105g (0.23 lb) |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | ABS resin, black, paint |
| Dimensions |
145.3 (W) × 70.7 (H) × 150.5 (D) mm (5.72' × 2.78' × 5.93') (Excluding Microphone Unit) |
| Weight | 800 g (1.76 lb) (Excluding Microphone Unit) |
| Accessory | Long Microphone Unit x 1 |
| Option |
Extension cord: YR-780-2M, YR-780-10M |
Brouchure: https://cdn1.npcdn.net/attachments/15648070240af13fd259011654fa8e50c31a31187f.pdf
