DM-1100.TOA Unidirectional Microphone

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

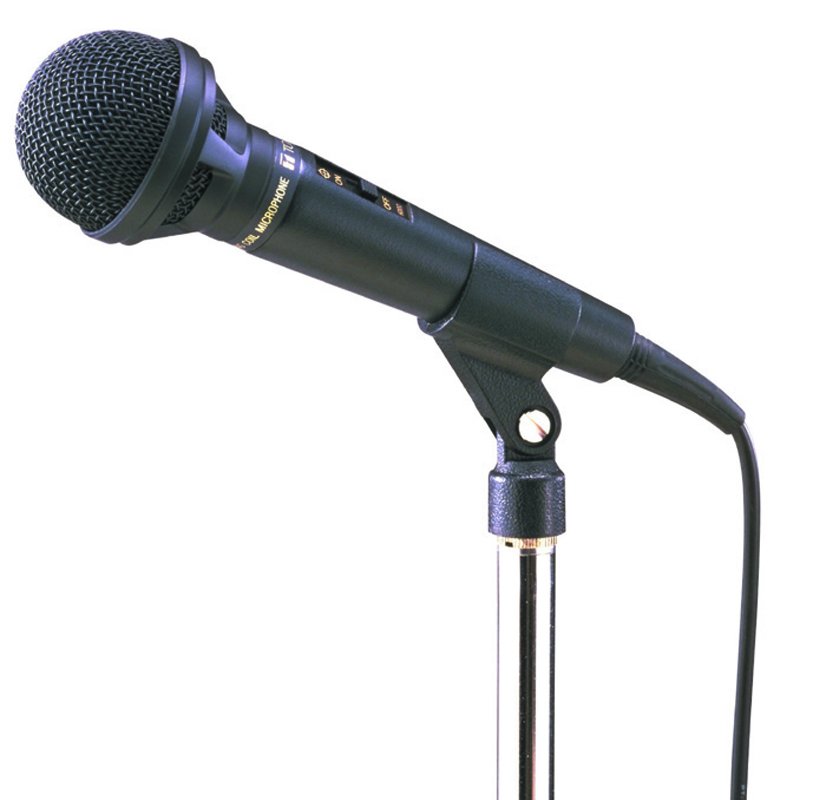

DM-1100.TOA Unidirectional Microphone

The DM-1100 is a multi-purpose microphone featuring high intelligibility.

Type Moving coil microphone
Directivity Unidirectional
Rated Impedance 600 Ω, unbalanced
Rated Sensitivity -55 dB (1 kHz 0 dB=1 V/Pa)
Frequency Response 100 Hz - 12 kHz
Connection Cable Single-core shielded cable
Cable Length 7.5 m
Terminal of Cable Phone plug
Talk Switch Short-off, slide switch
Finish Body: Die-cast aluminum, black
Head: ABS resin/zinc-plated steel wire, black
Dimensions φ55 × 178 mm (microphone body)
Weight 155 g (without connection cable)
Accessory Microphone holder (U5/16, NS5/8)


Brouchure: https://cdn1.npcdn.net/attachments/15645544580af13fd259011654fa8e50c31a31187f.pdf
