BS-301W.TOA Speaker System

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

BS-301W.TOA Speaker System

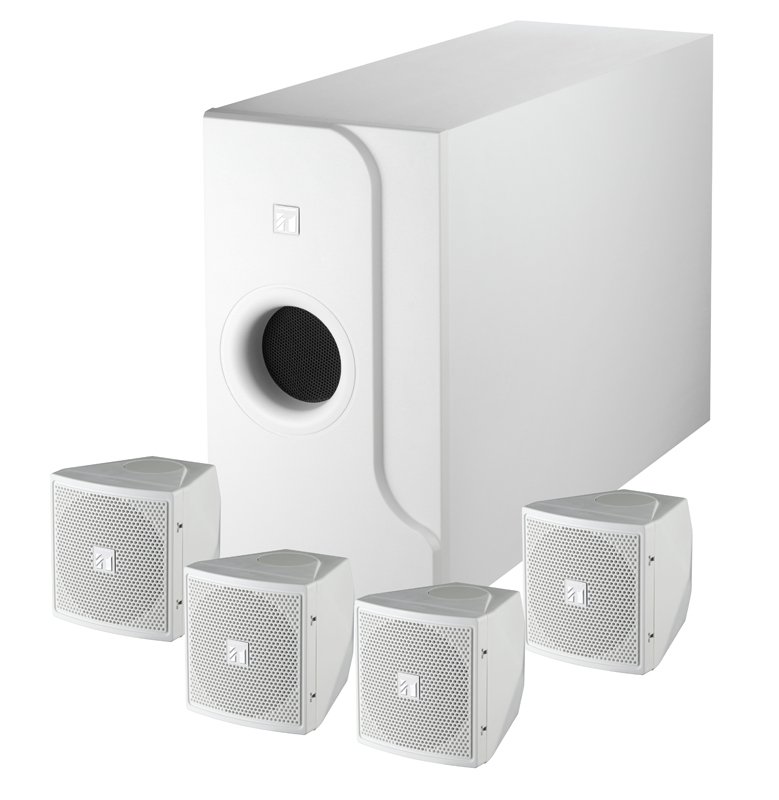

Designed for indoor use, the BS-301W is a 2-way speaker system featuring high power handling. It consists of a subwoofer and 4 satellite speakers. The subwoofer is equipped with two 16 cm cone speakers and each satellite speaker equipped with one 8 cm cone speaker. The subwoofer can be installed on a floor or to a wall, and the satellite speaker can be installed to a wall or ceiling.

Power Handling Capacity Continuous program: 160 W* ×2 channels
Continuous pink noise: 80 W* ×2 channels
Rated Impedance 4 Ω* ×2 channels
Sensitivity 81 dB (1 W, 1 m)* ×2 channels
Frequency Response 40 Hz - 20 kHz* ×2 channels
Weight 13.9 kg (30.64 lb) (excluding mounting bracket)
Subwoofer Rated impedance: 6 Ω ×2 channels
Speaker component: 16 cm (6.5') cone-type ×2 channels
Finish: Front panel…ABS resin, white
Enclosure…Wood, white
Speaker bracket…Steel plate, white, paint
Dimensions: 210 (W) × 390 (H) × 563 (D) mm (8.27' × 15.35' × 22.17')
Weight: 11.5 kg (25.35 lb) (excluding mounting bracket)
Satellite Speaker Rated impedance: 8 Ω
Speaker component: 8 cm (3') cone-type
Finish: Enclosure, Front panel…HIPS resin, white
Speaker bracket…Steel plate, white, paint
Dimensions: 92 (W) × 97.5 (H) × 100 (D) mm (3.62' × 3.84' × 3.94')
Weight: 600 g (1.32 lb) (excluding mounting bracket)
Product Composition Subwoofer…1, Satellite speaker…4
Accessory Subwoofer mounting bracket (white)…4, Rubber foot and fixing screw for subwoofer…4,
Subwoofer mounting screw…4, Satellite speaker mounting bracket (white)…6,
Satellite speaker mounting screw…8, Sticker for satellite speaker (white)…8



Brouchure: https://cdn1.npcdn.net/attachments/15644718810af13fd259011654fa8e50c31a31187f.pdf
