enquiry@asip.com.myHS-P1500B.TOA Powered Speaker
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

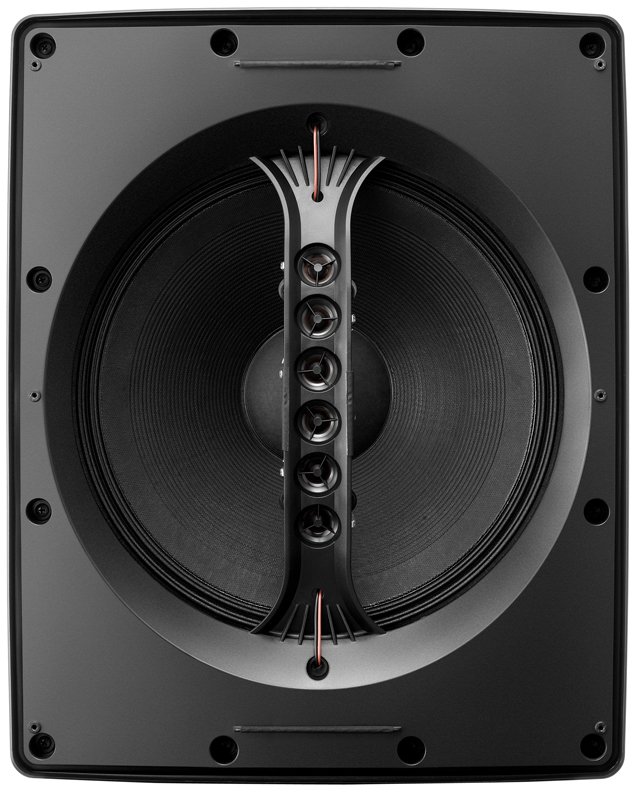

HS-P1500 Series Powered Coaxial Array Speakers are equipped with narrow directivity control to deliver a clear and well-balanced sound. It is installed with a built-in digital amplifier of 170W rated output, has an aux input and a combined line/mic input. This makes it suitable for portable use, such as in events, or fixed sound installation.
| Enclosure | Sealed type |
|---|---|
| Power Source | 220 - 240 V AV, 50/60 Hz |
| Rated Output | 170 W (Class D Amplifier) |
| Power Consumption | 100 W |
| Sensitivity | 98 dB (1 W, 1 m) |
| Frequency Response | 60 - 20 kHz |
| Crossover Frequency | 3 kHz |
| Directivity Angle | Horizontal: 90©b, Vertical: 40©b |
| Input |
MIC/LINE: XLR-3-31 type combination connector (balanced/unbalanced, -60dB/dB selective) AUX: XLR-3-31 type connector, -10dB unbalanced |
| Output | LINE out: XLR-3-31 type connector, 0dB unbalanced |
| Tone Control |
Bass: ±10dB at 100Hz Treble: ±10dB at 10kHz |
| Operating Temperature | -10¡æ to +40¡æ |
| Finish |
Enclosure: Polypropylene, black Input Panel: Surface-treated steel plate, black Punched Net: Surface-treated steel plate, black |
| Dimensions | 451 (W) × 560 (H) × 400 (D) mm (17.76 × 22.05' × 15.75')' |
| Weight | 16 kg (35.2 lb) unit only |
| Accessory |
POwer Cord (2m) x 1, Handle x 1, Handle fitting bracket x 2, Rubber foot x 2, Screw (M6 x 20) x 4 |
| Option |
Mounting bracket: HY-1500VB, HY-1500HB Ceiling mount bracket: HY-C0801 Wall mount bracket: HY-W0801 Speaker stand: ST-34B |
Brouchure: https://cdn1.npcdn.net/attachments/15643930280af13fd259011654fa8e50c31a31187f.pdf
