SR-S4S.TOA 2-Way Line Array Speaker System

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

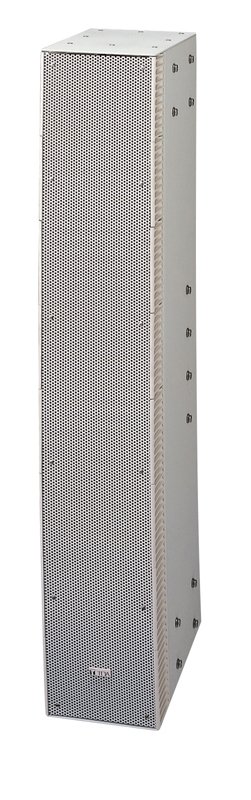

SR-S4S.TOA 2-Way Line Array Speaker System

The SR-S4S is a two-way line array speaker ideal for short distance sound transmission and configures a line array by arranging speaker elements vertically close to each other. It can be converted into the bi-amplifier drive system by changing the internal connection. It can be used for high-impedance applications with the installation of the optional MT-S0601 Matching transformer.

Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 600 W (single-amp mode)
Low 240 W, High 240 W (bi-amp mode)
Rated Impedance 8 Ω (single-amp mode)
Low 8 Ω, High 8 Ω (bi-amp mode)
Sensitivity 93 dB (1 W, 1 m)
Frequency Response 70 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)
Crossover Frequency 3.5 kHz
Directivity Angle Horizontal: 90b, Vertical: 10b
Speaker Component Low frequency: 10 cm cone-type × 8
High frequency: 2.5 cm balanced dome-type × 24
Input Connector M5 screw terminal, distance between barriers: 12.2 mm
and Neutrik NL4MP × 2
Finish Enclosure: MDF, white, paint
Front grille: Punched steel plate, white, acrylic paint
Dimensions 160 (W) × 892 (H) × 303 (D) mm
Weight 16 kg
Accessory Bi-amplifier drive rating label …1, Bi-amplifier drive input indication label …1
Option Matching transformer: MT-S0601, Extension plate: SR-EP4, Flying bracket: SR-FB4, Wall tilt bracket: SR-TB4, Stand adapter: SR-SA4, Protection pad: SR-PP4, Digital speaker processor: DP-SP3


Brouchure: https://cdn1.npcdn.net/attachments/15643700930af13fd259011654fa8e50c31a31187f.pdf
