F-2000WTWP.TOA Wide-dispersion Speaker System

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

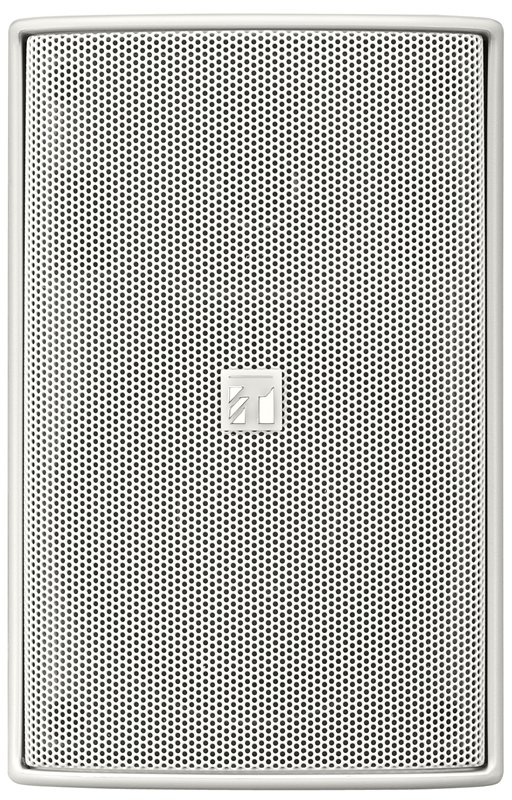

F-2000WTWP.TOA Wide-dispersion Speaker System

The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-2000WTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.

Enclosure Bass-reflex type
Rated Input 60 W
Rated Impedance 100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 3.3 kΩ (3 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 3.3 kΩ (1.5 W)
Sensitivity 92 dB (1 W, 1 m) at installation in 1/2 free sound field
93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter)
Frequency Response 65 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency 2.5 kHz
Directivity Angle Horizontal: 110b, Vertical: 100b Horizontal: 80b, Vertical: 80b (with horn adapter)
Speaker Component Low frequency: 20 cm (8') cone-type High frequency: 25 mm (1') dome tweeter
Input Terminal Push-in terminal
Water Protection IPX4
Operating Temperature -10 to +50 (14 bF to 122 bF)
Finish Enclosure: HIPS, white
Punched net: Surface-treated steel plate, white, anticorrosive paint
Joint bracket, wall bracket: Stainless steel
Speaker bracket: Die-cast aluminum, white, paint
Dimensions 244 (W) × 373 (H) × 235 (D) mm (9.61' × 14.69' × 9.25')
Weight 7.4 kg (16.31 lb) (including the supplied brackets)
Accessory Speaker bracket …1, Joint bracket …1, Wall bracket …1, Bracket fixing screw … 1 set,
Horn adapter …1, Horn adapter mounting screw …4, Terminal cover …1,
Terminal cover mounting screw …4
Option Speaker mount bracket: SP-131, YS-60B


Brouchure: https://cdn1.npcdn.net/attachments/15638714330af13fd259011654fa8e50c31a31187f.pdf
