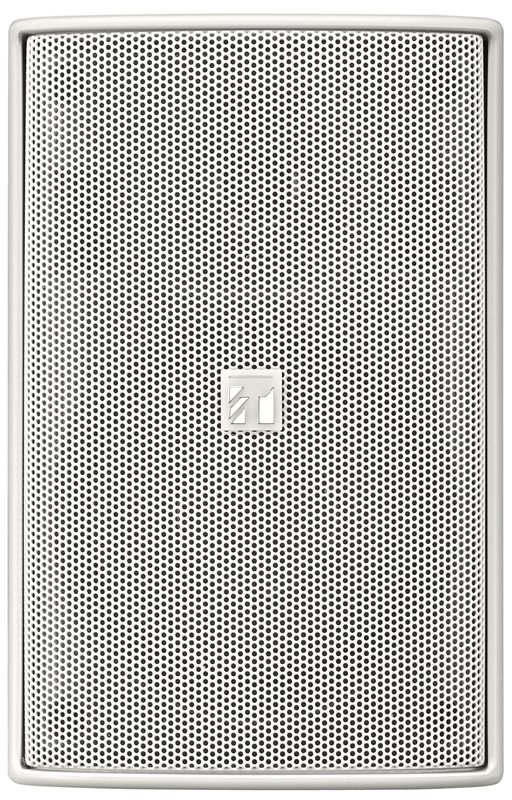

enquiry@asip.com.myF-1300WTWP.TOA Wide-dispersion Speaker System
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |
The F-1300 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1300WTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.
| Enclosure | Bass-reflex type |
|---|---|
| Rated Input | 30 W |
| Rated Impedance |
100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 90 dB (1 W, 1 m) at installation in 1/2 free sound field |
| Frequency Response | 80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field |
| Crossover Frequency | 2 kHz |
| Directivity Angle | Horizontal: 110©b, Vertical: 100©b |
| Speaker Component | Low frequency: 13 cm (5') cone-type, High frequency: 25 mm (1') dome tweeter |
| Input Terminal | Push-in terminal |
| Water Protection | IPX4 |
| Operating Temperature | -10 ¡æ to +50 ¡æ (14 ©bF to 122 ©bF) |
| Finish |
Enclosure: HIPS, white Punched net: Surface-treated steel plate, white, anticorrosive paint Joint bracket, wall bracket: Stainless steel Speaker bracket: Die-cast aluminum, white, paint |
| Dimensions | 162 (W) × 250 (H) × 161 (D) mm (6.38' × 9.84' × 6.34') |
| Weight | 3.6 kg (7.94 lb) (including the supplied brackets) |
| Accessory |
Speaker bracket …1, Joint bracket …1, Wall bracket …1, Bracket fixing screw …1 set, Terminal cover …1, Terminal cover mounting screw …4 |
| Option |
Speaker mount bracket: YS-60B |
Brouchure: https://cdn1.npcdn.net/attachments/15635952640af13fd259011654fa8e50c31a31187f.pdf
