Fingertec QR110

     Door Access System ---    FINGERTEC    ---

Previous ‹‹ » Next

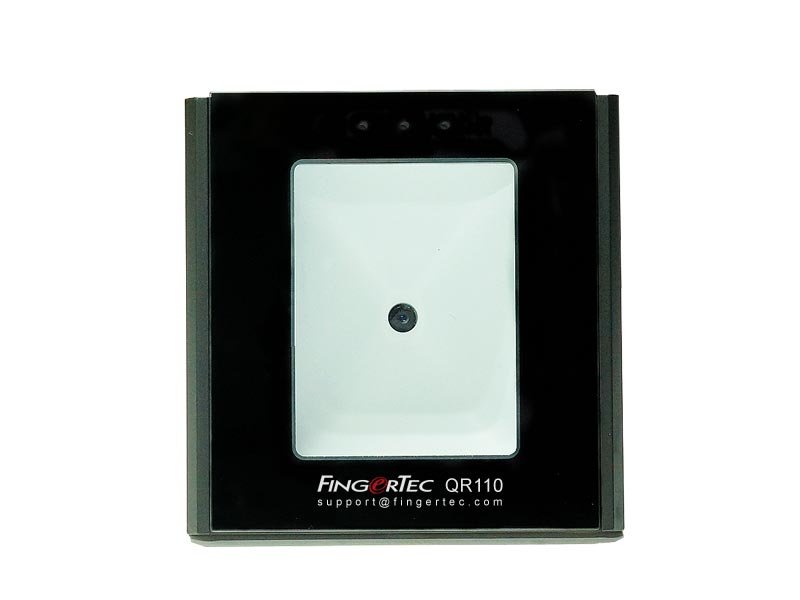

Fingertec QR110

Various Credentials
Choose between the ubiquitous QR code, RFID and *Mifare Card for your door access, knowing that QR110 easily accepts all of them.



Low Implementation Cost
Users can use their smartphone for QR code and gain access without having to invest in additional tokens or gadgets.



Quick and Accurate
Each verification of credential takes around 0.2 seconds; you do not need to worry about long queues to access your premises.



Linked to Ingressus
Connect QR110 to Ingressus controller for secure door access transactions and all. Data will be available in the Ingress software.

Safe and Secure
QR110 is a slave reader and all data will be kept in Ingressus controller before being downloaded to Ingress for further processing.





Manage Data Easily
Install Ingress to monitor all the data from QR110 and use all features that the software offers through IP connectivity



Aesthetic Design
QR100 comes with a sleek and slim design, suitable for any types of offices and premises, and it is equipped with a buzzer and LED for action indication.



Visitor Pass
Create a QR code with timezone restriction and share it with the visitor for temporary access. No need extra cards or other tokens for visitor access purposes.

LAYOUT PLAN

SPECIFICATIONS
MODEL QR110
DIMENSION (L X W X H), mm 86 x 4 x 86
CREDENTIALS (V) QR Code
RFID EM Card 125KHz
MiFare Card 13.56MHz (Made to order)
OUTPUT FORMAT Wiegand 26/34
COMMUNICATION DISTANCE Wiegand <100m
RS485 < 1200m
WORKING VOLTAGE DC 9 ~ 16V
WORKING CURRENT < 100mA
WORKING ENVIRONMENT Temperature (°C): -10 ~ 70
Humidity (%): 10 ~ 70 (Indoor use)
SENSING DISTANCE QR Code (cm): 3~10
Cards (cm): 2~3
READING SPEED < 0.2 seconds
READING INTERVAL <0.5 seconds
SUPPORT Q2i, R3, R2, Face ID 3, Kadex, m-Kadex, Ingressus I/II/IV

Brouchure: https://cdn1.npcdn.net/attachments/15547047900af13fd259011654fa8e50c31a31187f.pdf
