Fingertec m-Kadex

     Door Access System ---    FINGERTEC    ---

Previous ‹‹ » Next

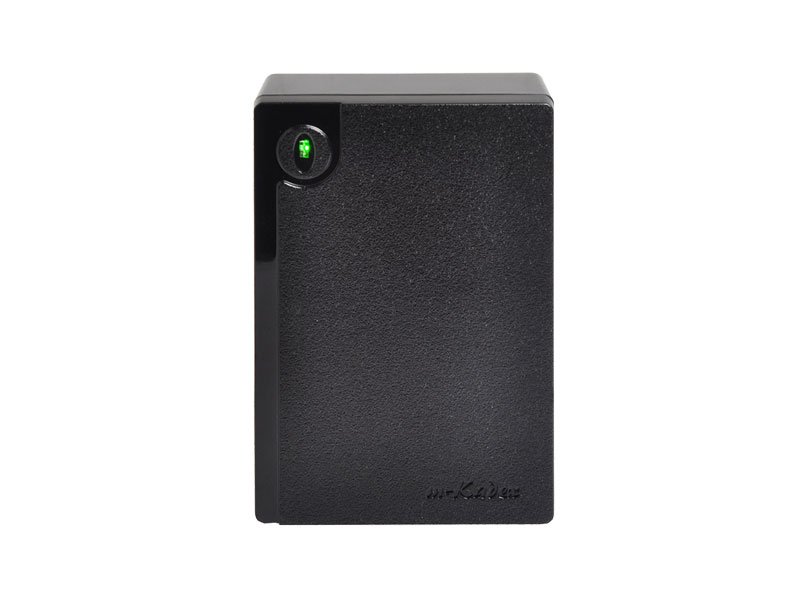

Fingertec m-Kadex

Small, Yet Loaded with Capacity
Kadex and m-Kadex can store a whopping total of 30000 users, and 50000 transaction logs.

Combine Your Verification Methods
Opt for a combination of verification methods to secure your workplace further. Choose the card and password verification with the Kadex for tighter security.

Manage Your Data Easily
Administration is easy with the Ingress software application. Ingress allows you to remotely manage door activity of all connected terminals, while containing time attendance functions for attendance monitoring.

Simple Administrator Management & Enrollment
m-Kadex’s simple outlook is complimented with a simple management system. Just swipe your administrator card to enroll, delete, or reset the terminal.

Value for Money
Mix and match your FingerTec system with m-Kadex to give you more value for your money. Choose Kadex for the main entrance and m-Kadex for other entrances. Haven’t you wanted options in life?




Manage Your Shift Workers
Kadex and m-Kadex can be programmed with a total of 50 time zones – perfect for companies with shift work.

Built-In Alarm
Increase the security at your workplace by installing an external alarm, and be alerted during unexpected scenarios such as break-ins and fire emergencies.

Easy Data Management
All you need is a USB flash disk to transfer transaction logs to your computer. It is that easy!
Layout Plan
System Communication
for illustration only

SPECIFICATIONS
MODEL Kadex m-Kadex
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS) Polycarbonate
TYPE OF ANTENNA RFID
MICROPROCESSOR 400 MHz
MEMORY 8 MB flash memory & 32 MB SDRAM 4 MB flash memory & 32 MB SDRAM
PUSH TECHNOLOGY Yes N/A
ALGORITHM BioBridge VX 9.0
PRODUCT DIMENSION (L X W X H), mm 92 x 48 x 137 92 x 29 x 134
STORAGE
• Cards 30000
• Transactions 50000
ENROLLMENT & VERIFICATION
• Methods Card & password Card
• Card per user ID 1
• Reading distance, mm 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare)
• Verication time (sec) <1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1325, 26-bit, 125kHz Make to order
COMMUNICATIONS
• Method TCP/IP, RS232, RS485, USB disk
• Baud rates 9600, 19200, 38400, 57600, 115200
• Wiegand 26-bit input / output
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 12V 2A
TIME ATTENDANCE
• Work codes Yes N/A
MULTIMEDIA
• Voice Yes N/A
• Display Black and White N/A
• Short messaging Yes N/A
ACCESS CONTROL
• EM lock driving output DC 12V 3A / relay output
• Alarm output NO / NC
• Anti passback Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) (only for Kadex) English (Standard), Arabic, Malay, Indonesian, Chinese Traditional / Simplified, Cantonese, Thai, Vietnamese, Korean, Spanish, Portuguese Portugal / Brazil, Polish, French, Russian, German, Italian, Turkish, Persian, Slovak, Greek, Dutch, Hebrew, Romanian, Bulgarian.
Other languages are available upon request
SOFTWARE LANGUAGE English (Standard), Arabic, Bulgarian, Chinese (Simplified/Traditional), French, German, Hindi, Indonesian, Kurdish, Malay, Persian, Portuguese, Russian, Spanish, Thai, Vietnamese

Broiuchure: https://cdn1.npcdn.net/attachments/15547037060af13fd259011654fa8e50c31a31187f.pdf
