Fingertec Timeline 100

     Door Access System ---    FINGERTEC    ---

Previous ‹‹ » Next

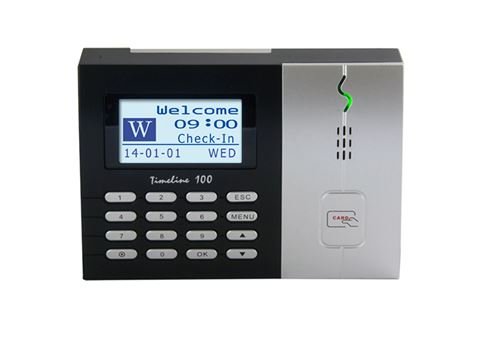

Fingertec Timeline 100

Supersized Capacity
Get up to 10,000 card templates and 30,000 transaction logs – more than enough to fulfill the requirements of an SME.

Cloud-Ready Technology
TimeLine 100 comes with the latest PUSH technology, suitable for FCC data storage and convenient for TimeTec TA. The technology eliminates the need for manual data download process.

Manage Data Easily
TCMS V3 is loaded with useful features complete with various reports for your business. Its data integration to 3rd party software is made available through the readily available SDK.

Combine Verification Methods
Opt for the combination of verification methods to secure your workplace further. Choose the card and password verification with the TimeLine 100 for tighter security.
Workcodes
Let your staff experience more independence by reporting their whereabouts via our workcodes feature.






Data Management Simplified
TimeLine 100 is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer.

Short Message Display
Communicate with your employee by personalizing a short message to be displayed at the terminal when they verify. The message can be directed to an individual or to a group of staff.

Value for Money
This model was designed to be economical so that you are able to implement FingerTec solutions at a lower cost. We believe that when it comes to security, there should be no compromise.
LAYOUT PLAN
for illustration only * optional

SPECIFICATIONS
MODEL TimeLine 100
SURFACE FINISHING Acrylonitrile butadiene styrene (ABS)
TYPE OF ANTENNA RFID
MICROPROCESSOR 400 MHz
MEMORY 8 MB flash memory & 32 MB SDRAM
ALGORITHM BioBridge VX 9.0
PUSH TECHNOLOGY Yes
PRODUCT DIMENSION (L X W X H), mm 190 x 50 x 140
STORAGE
• Cards 10000
• Transactions 30000
ENROLLMENT & VERIFICATION
• Methods Card & password
• Card per user ID 1
• Reading distance, mm 40 ~ 80 (RFID, HID), 30 ~ 50 (Mifare)
• Verification time (sec) < 1
CARD TECHNOLOGY
• RFID: 64-bit, 125kHz, RF output power (EN300-330) Yes
• MIFARE: MFIS50/S70, 13.56MHz Make to order
• HID: HID 1325, 26-bit, 125kHz Make to order
COMMUNICATIONS
• Method TCP/IP, USB disk (Optional: RS232 & RS485)
• Baud rates 9600, 19200, 38400, 57600, 115200
OPERATING ENVIRONMENT
• Temperature (°C) 0 ~ 45
• Humidity (%) 20 ~ 80
• Power input DC 5V 2A
TIME ATTENDANCE
• Siren Buit in and external
• Work codes Yes
MULTIMEDIA
• Voice Yes
• Display Black and white
• Short messaging Yes
VOICE / DISPLAY LANGUAGE (TERMINAL) English (Standard), Arabic, Indonesian, Chinese (Simplified), Cantonese / Chinese (Traditional), Thai, Vietnamese, Spanish, Portuguese (Portugal), French, Russian, German, Turkish & Persian
Other languages are available upon request.
SOFTWARE LANGUAGE Arabic, Bulgarian, Chinese (Simplified), Chinese (Traditional), English, German, Hindi, Indonesian, Kurdish, Malay, Portuguese, Russian, Spanish, Thai, Vietnamese
