DS-7208HGHI-F1.8CH Tribrid 720P Turbo Digital Video Recoder

     CCTV System ---    HIKVISION    ---

Previous ‹‹ » Next

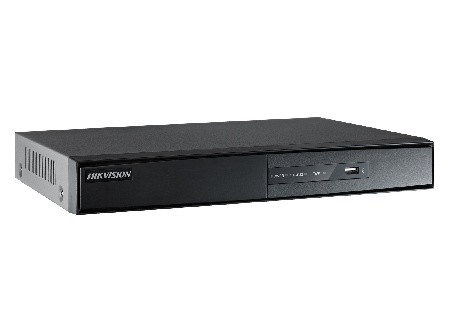

DS-7208HGHI-F1.8CH Tribrid 720P Turbo Digital Video Recoder


  • Connectable to HD-TVI, AHD, network, analog cameras
  • Connectable to the coaxitron camera with long transmission distance
  • Encoding at up to 720p resolution
  • 1 SATA interface for HDD with up to 6TB capacity
  • Locking and unlocking record files
  • Spport access by EZVIZ cloud P2P
Specifications:
VIDEO / AUDIO INPUT
Video compression H.264
Analog and HD-TVI video input 8CH, BNC interface (1.0Vp-p, 75 Ω)
Supported camera types 720P/25, 720P/30
Supported AHD input 720P/25, 720P/30, CVBS
IP video input 2-ch, up to 960p resolution
Audio input / Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO / AUDIO OUTPUT
HDMI / VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Audio Input 1-ch, RCA(Linear, 1ohm)
NETWORK MANAGEMENT
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
ENCODING
Video compression standard H.264
Encoding resolution 720P/WD1/4CIF/VGA/CIF
Frame rate 1/16fps, real time frame rate
Video bitrate 32kps to 4Mbps
Stream type Video/Audio
Dual-stream Support
Audio compression stanrad G.711u
Audio bitrate 64kbps
Synchronous playback 8-ch
HARD DISK
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
EXTERNAL INTERFACE
Network interface 1x 10M / 100M self-adaptive Ethernet interface
USB port 2× USB2.0
GENERAL
Power supply 12V DC
Consumption (without hard disks) ≤ 12W
Working temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working humidity 10% ~ 90%
Chassis 260mm chassis
Dimensions (W × D × H) 260 × 222 × 45mm
Weight (without hard disks) ≤ 1Kg (2.2lb)




Brochure : https://cdn1.npcdn.net/attachments/1550458693504e5b3e37a2d6bc037b25622e97a6fc.pdf
