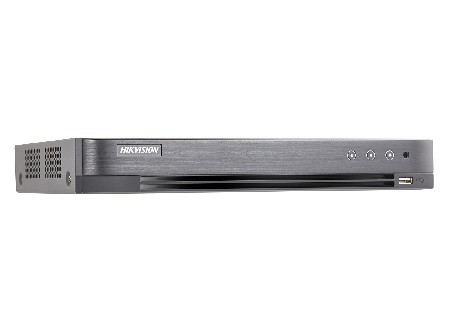

enquiry@asip.com.myDS-7208HUHI-K2.8CH 5MP/4MP Turbo HD 4.0 DVR
CCTV System --- HIKVISION ---
| Previous ‹‹ | » Next |
- Self Self -adaptive HDTVI/ HDCVI/ AHD/ CVBS signal input
- H.265+/H.265/H.264+/H.264 encoding for the main stream
- 5MP/4MP HDTVI video input and recording
- Up to 6MP IP cameras input
- Long distance transmission over UTP and coaxial cable
- Hik-Connect & DDNS for easy network management
Specifications:
| VIDEO / AUDIO INPUT | |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 8CH, BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI input | 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| IP video input | 2-ch, (Up to 6 MP resolution), Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input / Two-way audio input | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| VIDEO / AUDIO OUTPUT | |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI / VGA output |
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Ecoding resolution | 5MP/ 4MP/ 4MP/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF |
| Frame rate |
Main stream: 5MP@12fps/ 4MP@15fps/ 3MP@18fps/ 1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps(N) Sub-stream: WD1/ 4CIF/ CIF@25fps (P)/ 30fps(N) |
| Video bitrate | 32kbps to 10Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bitrate | 64kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| NETWORK MANAGEMENT | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| HARD DISK | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 8TB capacity for each disk |
| EXTERNAL INTERFACE | |
| Two-wau audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB port | 2 × USB 2.0 |
| Alarm in/out | 8/4 |
| Serial interface | RS-485 (half-duplex) |
| GENERAL | |
| Power supply | 12 VDC |
| Consumption (without hard disks) | ≤ 20 W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without hard disks) | ≤ 1.78 kg |
Brochure : https://cdn1.npcdn.net/attachments/1550291830504e5b3e37a2d6bc037b25622e97a6fc.pdf
