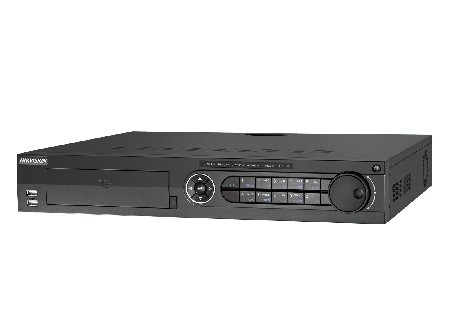

enquiry@asip.com.myDS-7304HGHI-SH.4CH 1080/720P Turbo Digital Video Recoder
CCTV System --- HIKVISION ---
| Previous ‹‹ | » Next |
- Connectable to HD-TVI analog cameras
- Connectable to the Coaxitron camera/dome with long transmission distance
- 1080p / 720p video resolution
- 4 SATA interfaces for HDD with up to 6TB capacity
- Simultaneous HDMI, VGA, CVBS output up to 1080P
- Spport access by EZVIZ cloud P2P
Specifications:
| VIDEO / AUDIO INPUT | |
| Video compression | H.264 |
| Analog and HD-TVI video input | 4CH, BNC interface (1.0Vp-p, 75 Ω) |
| Supported camera types | 720P/25, 720P/30, 50, 60, 1080P/CVBS720P/25, 720P/30, 50, 60, 1080P/CVBS |
| Supported AHD input | 720P/25, 720P/30 |
| IP video input | 1-ch, (up to 5-ch), 2MP resolution |
| Audio compression | G.711u |
| Audio input / Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| VIDEO / AUDIO OUTPUT | |
| CVBS output | Support |
| HDMI / VGA output | 1920 x 1080/60 Hz ,1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz |
| Ecoding resolution |
Main stream: 1080P(non-real time) / 720P / VGA / 4CIF / CIF Sub stream: WD1(non-real time) / 4CIF(non-real time) / CIF / QCIF / QVGA |
| Frame rate |
Main stream: 1/16fps to Real-time frame rate Sub stream: 1/16fps to Real-time frame rate |
| Video bitrate | 32kbps to 6Mbps |
| Audio output | 2-ch, RCA(Linear, 1KΩ, for VGA output and CVBS output respectively) |
| Audio bitrate | 64kbps |
| Dual stream | Support |
| Stream type | Video / Audio |
| Synchronous playback | 4-ch |
| NETWORK MANAGEMENT | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| HARD DISK | |
| SATA | 4 SATA interface; 1eSATA interface |
| Capacity | Up to 6 TB capacity for each disk |
| EXTERNAL INTERFACE | |
| Network interface | 1x 10M / 100M / 1000M self-adaptive Ethernet interface |
| Serial interface | 1 standard RS-232, RS-485, keyboard |
| USB port | 3× USB2.0 |
| Alarm in/out | 16 / 4 |
| GENERAL | |
| Power supply | 100 ~ 240VAC, 47 ~ 63Hz |
| Consumption (without hard disks) | ≤ 30W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Chassis | 19-in rack mounted 1.5U chassis |
| Dimensions (W × D × H) | 445 x 390 x 70mm |
| Weight (without hard disks) | ≤ 5Kg (11.0lb) |
Brochure : https://cdn1.npcdn.net/attachments/1550284661504e5b3e37a2d6bc037b25622e97a6fc.pdf
