EP1200A.Emergency Paging Panel

     PA/Sound System ---    AMPERES    ---

Previous ‹‹ » Next

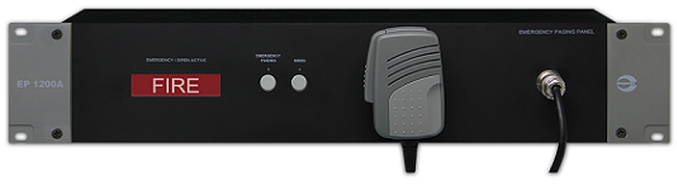

EP1200A.Emergency Paging Panel

EP1200A Emergency Paging Panel is important paging source during emergency situation, which the user shall be able to page and override all zones, muting any ongoing BGM or normal paging in progress.The unit has EVAC message input channel for auto announcement by MR1301 ( or other message player ).  The front mic has the highest priority over others. It can be linked to Fire Alarm Panel ( FAP ) for alarm signalling.Other possible interface includes FI6000 for phased evacuation as per requirement by EN54 and also with iPX5151 for LAN setup.

Specifications:



 Voltage     24 DC

Consumption    3.5 W
   Sensitivity      -72 dB Omni Condenser
 Impedance          600 Ohm
Freq response    300 - 8 KHz
Frequency    Continuous at 8KHz
 Duration                Continuous at activivation
   Activation           Front switch / rear contact

Input channel
 Pre-Amp, Message in
Output level        Line 1.25V balanced
Priority sequence       Mic - Sire - Message - BGM
Indicator           Indicator
Dimensions  482X 88 X 180 mm  ( excluding mic )

Weight       3 kg






Brochure : https://cdn1.npcdn.net/attachments/1550111460504e5b3e37a2d6bc037b25622e97a6fc.pdf
