D-984VC.VCA Control Module

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

D-984VC.VCA Control Module

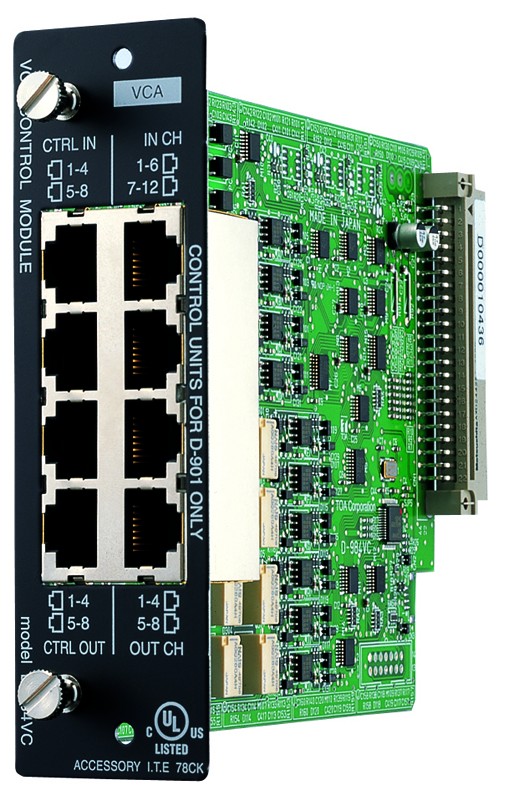

The D-984VC is a dedicated VCA control module designed for use with the D-901 Digital Mixer. It expands the D-901 Digital Mixer's functions by 20 VCA control inputs, 8 contact inputs, and 8 contact outputs. By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. By the contact input controls from external equipment, this module permits the preset memory recall, input/output channel gains, stereo input selection, and channel ON/OFF to be controlled. By the contact output controls Tally outputs can also be provided for external control.

Specifications:


VCA Control Input +5 V, GND, Terminal 1 - 20 (12 Input channels, 8 output channels), RJ45 connector × 4
Control contents: Volume control of each input/output channel
Variable range: - dB to + 0 dB
Contact Input COM + Terminal 1 - 8: Open voltage: 5 V DC,
short-circuit current: 5 mA, RJ45 connector × 2

Control
Preset Memory Selection Any preset memory can be recalled.
Control method: No-voltage make of over 100 ms/
                         No-voltage make single pulse of over 100 ms
Volume Control Any input/output channel volume can be turned UP or DOWN.
Control method: 1 step variation for no-voltage make single pulse of over 100 ms
                         1 step continuous operation for every 70ms for no-voltage make of over 100ms. Can be reset when at break.
                         Variable Range: - dB to +10 dB
Channel Any input/output channel can be turned ON and OFF.
Control method: No-voltage make of over 100 ms/
                         No-voltage make single pulse of over 100 ms
Stereo Selection Input channel lines of the D-936R (optional), or the D-937SP
(optional) (4 stereo input module) can be selected.
Control method: No-voltage make of over 100 ms/
                         No-voltage make single pulse of over 100 ms

Contact Output COM + Terminal 1 - 8: No-voltage make contact,
contact capacity: 24 V DC, 100 mA,
RJ45 connector × 2
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 170 g





Brochure :
https://cdn1.npcdn.net/attachments/1549957571504e5b3e37a2d6bc037b25622e97a6fc.pdf
