D-2008SP.Digital Mixing Processor Unit

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

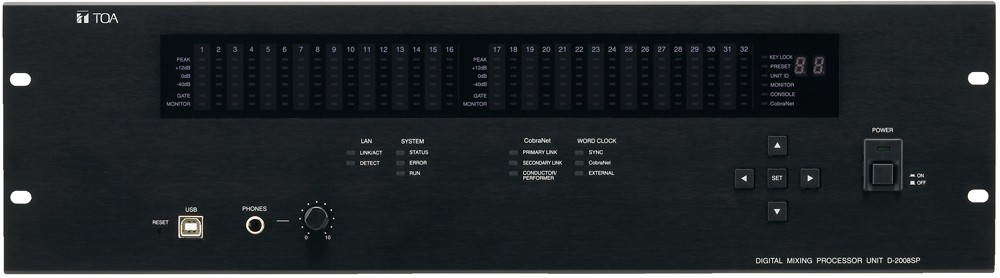

D-2008SP.Digital Mixing Processor Unit


The D-2008SP Digital Mixing Processor Unit is designed to have up to 32 audio inputs and outputs in total, and to be mounted in an EIA standard equipment rack (3U size). A built-in powerful signal processing function permits the unit to be used as both a mixer and a signal processor. Its audio input/output and control ports can accept optional plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 control modules. Using the following optional modules enables the unit to perform their functions: Two D-983s for providing a maximum of 48 contact inputs and 32 contact outputs, D-984VC for VCA control, and D-2000CB for audio data transfer between multiple D-2008SP units. Each function is set by the dedicated setting software on a PC. Setting contents can be stored in the unit's internal memory as preset memory, which can be recalled by the D-2008SP without using a PC. The D-2012C, when connected, remotely controls the D-2008SP's basic operations such as volume control.

Specifications:


Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption 76 W
Frequency Response 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Sampling Frequency 48 kHz
Input and Output Input: Max. 32 channels, modular construction (modules optional)
Output: Max. 32 channels, modular construction (modules optional)
Monitor bus: 1 stereo input, 1 stereo output
Connector: RJ45 connector
Connection cable: Shielded Category 5 or higher twisted pair
LAN cable(CAT5-STP)
Maximum cable distance: 100 m (between D-2008SP and D-2012C)
Headphone: 1 stereo

Signal Processing
Feedback Suppression Function 12 filters (auto + dynamic), maximum 4 bus channels
Auto-Mixing Function Ducker (automatic muting), NOM attenuation
Auto-Mixing Group 4 groups
Equalizer/Filter Parametric equalizer: 20 Hz - 20 kHz, ±15 dB, Q: 0.267-69.249
Filtering: High-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Low-pass filter 20 Hz - 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter 20 Hz - 20 kHz, Q: 8.651 - 69.249
All-pass filter 20 Hz - 20 kHz, Q: 0.267 - 69.249
High shelving filter 6 - 20 kHz, ±15 dB
Low shelving filter 20 - 500 Hz, ±15 dB
Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps)
Crossover filter: 20 Hz - 20 kHz,
6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct
Compressor/Auto-Leveler (Compressor mode)
Threshold: -20 to +20 dB (1 dB steps)
Ratio: 1:1, 1.1:1, 1.2:1, 1.3:1, 1.5:1, 1.7:1, 2:1, 2.3:1, 2.6:1, 3:1, 4:1,
5:1, 7:1, 8:1, 10:1, 12:1, 20:1, :1
Attack time: 0.2 ms - 5 s, Release time: 10 ms - 5 s
Gain: - ∞ - +10 dB
Knee type: hard knee, soft knee 1, soft knee 2
(Auto-leveler mode)
Target level: -20 to +10 dB (1 dB steps)
Maximum gain: 0 to +20 dB (1 dB steps)
Attack time: 10 ms - 10 s, Release time: 100 ms - 10 s
Output Delay Delay time: 0 - 1360 ms (0.021 ms steps)
BUS Delay Delay time: 0 - 677 ms (0.021 ms steps)
Matrix Input: Max. 34 ( 32 + 2 ) channels × 24 buses,
Output: Max. 44 (24 + 4 + 16) buses × 32 channels
CobraNet Matrix Input: Max. 16 channels × 24 buses,
Output: Max. 28 (24 + 4) buses × 16 channels
Crosspoint Gain - ∞ - 0 dB (1 dB steps)

Preset Memory 32
Auxiliary Function Key Locking function
LAN Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Connected via a switching hub
Network protocol: TCP/IP
Connection cable: Shielded Category 5 or higher twisted pair LAN cable(CAT5-STP)
Maximum cable distance: 100m(between D-2008SP and switching hub)
Control RS-232C: D-sub connector (9 pins) Used for external control
Module: Remote control module slot: 2
Operating Temperature +5 → to +40 → (41 쯡F to 104 쯡F)
Finish Panel: Aluminum, hair-line finish, black Case: Surface-treated steel plate
Dimensions 482 (W) × 132.6 (H) × 343.4 (D) mm (18.98' × 5.22' × 13.52')
Weight 6.3 kg (13.89 lb)
Accessory Power cord (2 m (6.5 ft)) …1, Rack mounting screw …4, CD (Set-up software) …1
Module mounting screw (spare) …4, Blank panel (preinstalled on the module slot) …8
Option Mic/line input module: D-2000AD1, D-921E, D-921F, D-922E, D-922F
Stereo select input module: D-936R
Digital input module: D-923AE
Line output module: D-971E, D-971M, D-971R, D-2000DA1
Digital output module: D-972AE
CobraNet interface module: D-2000CB
Remote control module: D-981, D-983
VCA control module: D-984VC

Personal Computer Requirements
CPU Intel Pentium4 2GHz or higher
Memory 1.5 GB or more (2 GB or more recommended)
Display 1024 x 768 resolution or higher
Free Hard Disk Space 16 MB or more (for D-2000 Setting Software installation)
500 MB or more (when '.NET Framework' needs to be installed)
LAN Card Compatible to 10BASE-T or faster connection





Brochure : https://cdn1.npcdn.net/attachments/1549957067504e5b3e37a2d6bc037b25622e97a6fc.pdf
