TT-104B.Program Timer

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

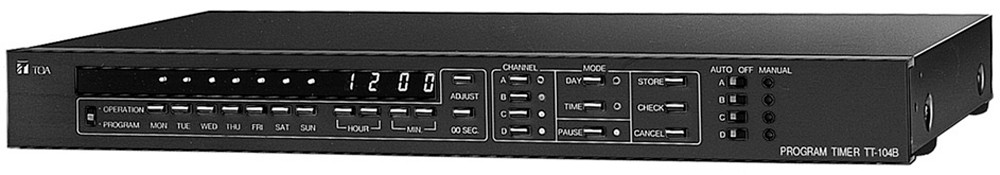

TT-104B.Program Timer


The TT-104B is a program timer that comes with 4 outputs and controls 4 different broadcasts. With use of an optional rack-mounting bracket, it can be mounted in an EIA Standard equipment (occupying 1 unit size).

Specifications:


Power Source 220 - 240 V AC, 50/60 Hz
Power Consumption 3 W
Displayed Contents Day of the week, hour and minute
Programmable Item Day of the week, hour, minute, output channel
Number of Channels 4 channels (A,B,C,D)
Output System No-voltage (DRY) make contact (5-second pulse make output)
Output Capacity 24 V DC, 0.5 A
Output Terminal M4 screw terminal, distance between barriers: 9 mm (0.35)'
Program Capacity 30 steps per channel
Clock Accuracy ±5 seconds per month (25 → (77 쯡F))
Power Outage Protection Period 100 hours
Operating Temperature 0 → to +50 → (32 쯡F to 122 쯡F)
Finish Panel: Aluminum, black, 30 % gloss, paint
Case: Pre-coated steel plate, black
Dimensions 420 (W) × 47.5 (H) × 246.5 (D) mm (16.54 × 1.87' × 9.7')'
Weight 2.5 kg (5.51 lb)
Option Rack-mounting bracket: MB-15B
