RS-481.IP Intercom Option Handset

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

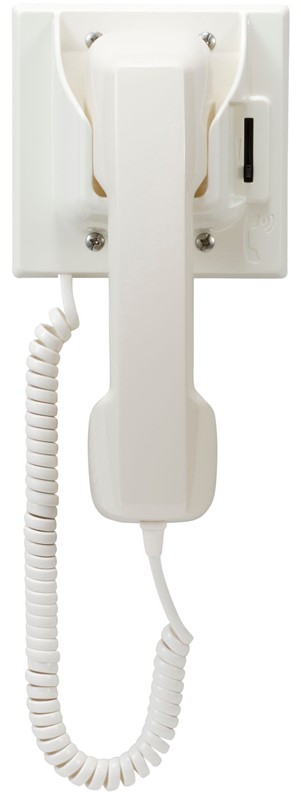

RS-481.IP Intercom Option Handset


The RS-481 is a handset for the RS-480 4-Wire Multi-Purpose Substation with a Status indicator. Lifting the handset will initiate a call to a preprogrammed master station, enabling a handset conversation.

Specifications:


Handset Receiver Dynamic type
Handset Transmitter Electret condenser type
Handset receiver volume control Slide volume, Maximum control level: 12 - 18 dB
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Finish ABS resin, pale white
Dimensions 116 (W) × 220 (H) × 71 (D) mm (4.57' × 8.66' × 2.8')
Weight 365 g (0.8 lb)
Accessory Box mounting screw (No.6-32UNC × 18) ……4,
Box mounting screw (M4 × 25) ……4
Applicable Box For flush-mount: 2-gang electrical box YC-302 (option)
For surface-mount: Indoor wall-mount box YC-822 (option)






Brochure : https://cdn1.npcdn.net/attachments/1549940954504e5b3e37a2d6bc037b25622e97a6fc.pdf
