enquiry@asip.com.myRS-141.IP Intercom Option Handset
PA/Sound System --- TOA ---
| Previous ‹‹ | » Next |

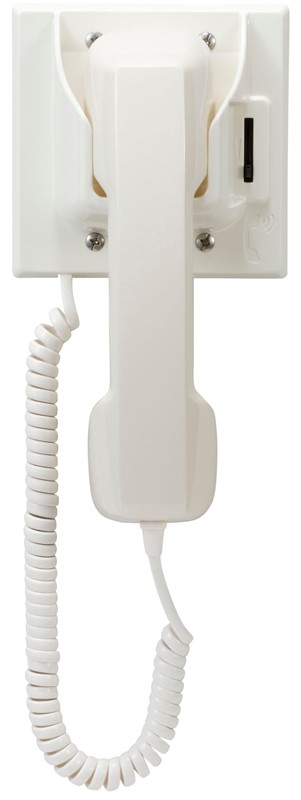

The RS-141 is a handset for the RS-140 Switch Panel. Lifting the handset will initiate a call to a preprogrammed master station, enabling a handset conversation.
Specifications:
| Handset Receiver | Dynamic type |
| Handset Transmitter | Electret condenser type |
| Wiring | Two-core shielded cable |
| Handset receiver volume control | Slide volume, Maximum control level: 12 - 18 dB |
| Operating Temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Finish | ABS resin, pale white |
| Dimensions | 116 (W) × 220 (H) × 71 (D) mm (4.57' × 8.66' × 2.8') |
| Weight | 350 g (0.77 lb) |
| Accessory |
Box mounting screw (No.6-32UNC × 18) ……4, Box mounting screw (M4 × 25) ……4 |
| Applicable Box |
For flush-mount: 2-gang electrical box YC-302 (option) For surface-mount: Indoor wall-mount box YC-822 (option) |
Brochure : https://cdn1.npcdn.net/attachments/1549940279504e5b3e37a2d6bc037b25622e97a6fc.pdf
