S4.04-L.UHF Wireless Set

     PA/Sound System ---    TOA    ---

Previous ‹‹ » Next

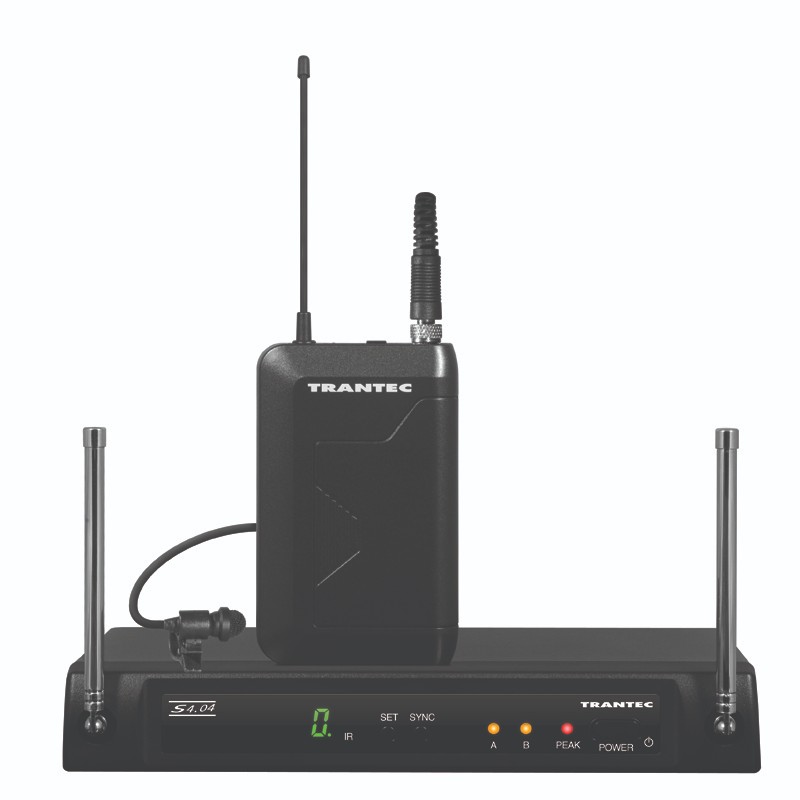

S4.04-L.UHF Wireless Set


The S4.04 Series is Trantec's simplest plug and play system, designed to launch you in to the world of wireless. It's rugged and compact frames hold a reliable multifunctioning system that is optimised for use with a range of microphones from handheld, to lapels, to headsets or alternatively can be used with a musical instrument.

Specifications:


Product Composition Wireless Transmitter x 1
Receiver x 1
Lavalier Microphone x 1
Frequency Range 506 - 937.5 MHz (*1), UHF
Channel Selectable 4 channels
Tunable Frequencies 25 kHz Steps
Pilot Tone 32.768 kHz
Total Harmonic Distortion <1% @ 1kHz
Function IR sync, Channel scan, Battery Life Information
Accessory AC adapter (*2) x 1
Screw Driver x 1


Wireless Transmitter


RF Carrier Power 10 mW
Audio Frequency Response 50 - 15,000 Hz
Audio Input Level -6dBV (Maximum), mic gain 0dB
Modulation System PLL synthesizer
Battery 1 AA size alkaline battery, 1.5V
Battery Life Approx. 10 hours
Indicator Battery Status LED, 7 Segments LED
Finish Resin, coating
Dimensions 62 (W) x 100 (H) x 25 (D) mm (with clip)
Weight Approx. 85 g (with battery)


Wireless Receiver


Diversity Reception AC mains (supplied AC-DC adapter must be used)
Sensitivity 10uV at 45dBA S/N
Squelch (SQ) Tone SQ, Carrier SQ and Noise SQ
Audio Frequency Response 50 - 15,000Hz
Audio Output Level (Maximum) S4.04-RX Balanced (XLR socket): -20dBu
               Unbalanced (1/4' jack socket): 10dBu
Power Supply 11-18 VDC 300mA
Dimensions 215 (W) × 39 (H) × 102 (D) mm (excluding antenna and BNC)
Weight 480 g






Brochure : https://cdn1.npcdn.net/attachments/1549865366504e5b3e37a2d6bc037b25622e97a6fc.pdf
