enquiry@asip.com.mySR-M05R.Speaker System
PA/Sound System --- AMPERES ---
| Previous ‹‹ | » Next |

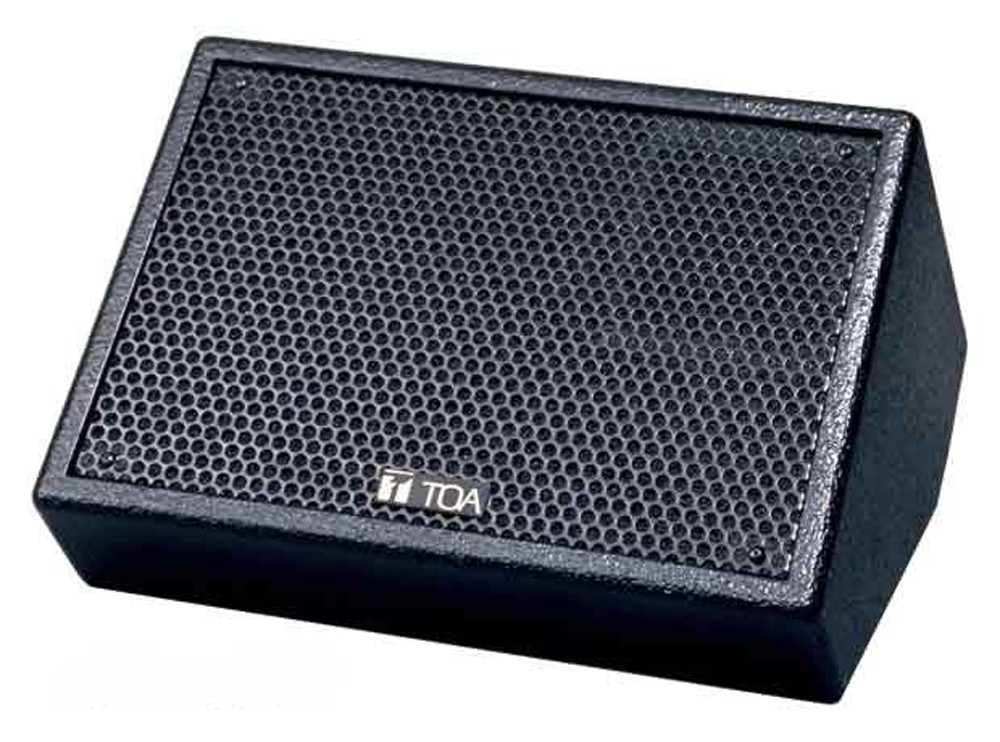

The SR-M05R is a floor monitor speaker system featuring high power handling capacity, high quality sound and heavy-duty construction. It is driven by a single amplifier having a built-in passive network.
Specifications:
| Enclosure | Bass-reflex type |
| Power Handling Capacity |
450 W (continuous program) 150 W (continuous pink noise) |
| Rated Impedance | 8 Ω |
| Sensitivity | 99 dB (1 W, 1 m) |
| Frequency Response | 60 Hz - 18 kHz (when recommended parameters are applied by the optional DP-SP3) |
| Crossover Frequency | 2 kHz |
| Speaker Component |
Low frequency: 25 cm diameter cone-type High frequency: CD horn (40° horizontal x 40° vertical) fitted with compression driver |
| Input Connector | Neutrik NL4MP x 2 |
| Finish |
Enclosure: MDF, black, urethane coating Front grille: Black, acrylic paint |
| Dimensions | 444 (W) × 274 (H) × 404 (D) mm |
| Weight | 17.8 kg |
